Question: For the following structure, a ) Identify any zero force members. b ) Determine the force in members GF , BF and BC and state

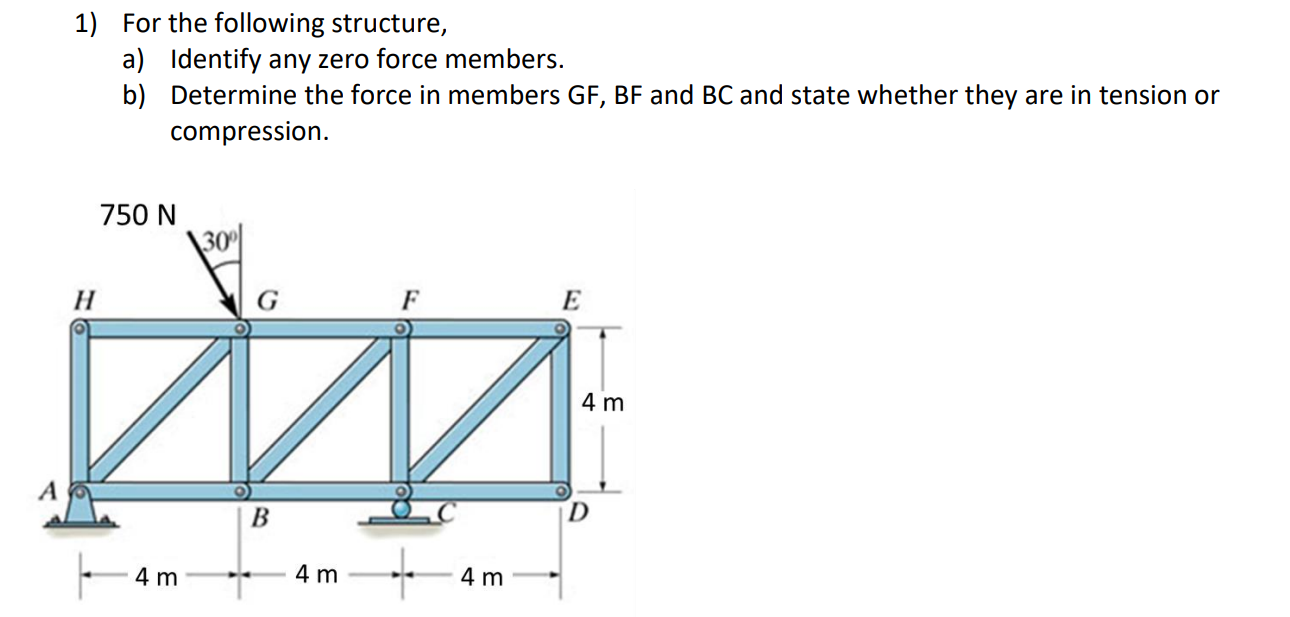

For the following structure,
a) Identify any zero force members.
b) Determine the force in members GF, BF and BC and state whether they are in tension or compression.
For the following structure, a ) Identify any

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
