Question: For the given control graph diagram please answer three questions. a.Label the edges and the nodes in the graph with the corresponding code fragments. b.

For the given control graph diagram please answer three questions.

a.Label the edges and the nodes in the graph with the corresponding code fragments.

b. Provide two tests that satisfy node and edge coverage (one for each).

c. If possible, lists test paths that achieve Node Coverage but not Edge Coverage. If not possible, explain why.

For the given control graph diagram please answer three questions. a.Label the

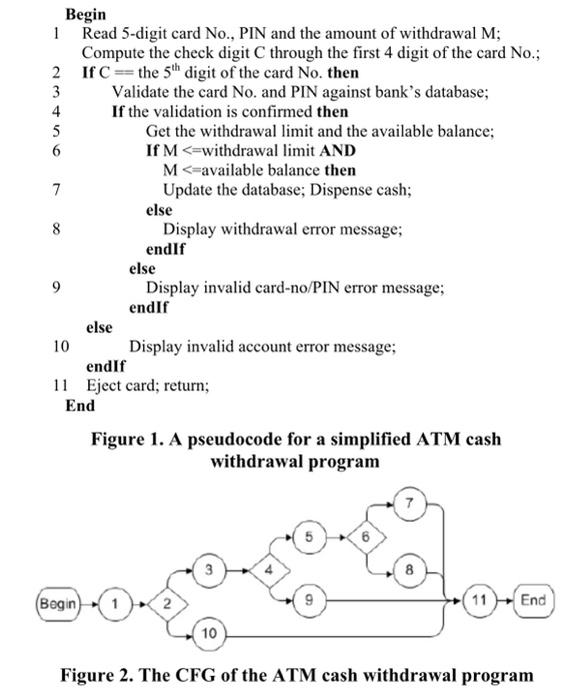

AN 8 Begin 1 Read 5-digit card No., PIN and the amount of withdrawal M; Compute the check digit C through the first 4 digit of the card No.; 2 IfC=the 5th digit of the card No. then 3 Validate the card No. and PIN against bank's database; 4 If the validation is confirmed then 5 Get the withdrawal limit and the available balance; 6 If M
