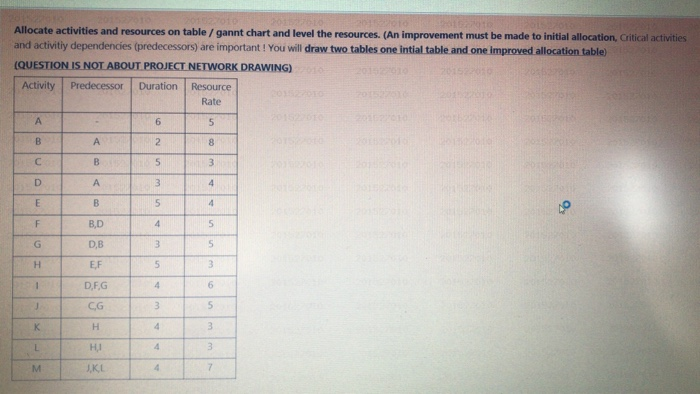

For the given project activities and predecessors below a) Draw the project network and show starting and ending times of activities on network (Draw the network to an empty paper and upload the picture, 25 Points) b) Find critical path / paths and project completion time. (You can write to the box below or write to an empty paper and upload the picture, 5 points) If your budget is 450 TL how many days can you crush (shorten) the project? What is the critical path and project completion time after crushing? Please show your calculations steps (which activities are choosen and how many days shortened) (Draw the network to an empty paper, show your calculations and upload the picture, 20 points) Activity Predecessor Duration Crushed Normal Duration Cost Crushed Cost A 20 10 SOO 1000 B 20 18 300 380 B 5 3 250 270 D G 20 17 800 920 E D 20 18 600 800 F A 25 22 200 500 G CF 15 14 180 210 H D 33 32 230 290 30 28 380 460 D. 45 43 450 500 Allocate activities and resources on table / gannt chart and level the resources. (An improvement must be made to initial allocation, Critical activities and activitiy dependencies (predecessors) are important! You will draw two tables one intial table and one improved allocation table) (QUESTION IS NOT ABOUT PROJECT NETWORK DRAWING) ES 2015 Activity Predecessor Duration Resource Rate 6 5 B 2 8 B 5 3 D 3 4 E B 5 4 o F BD 4 5 G DB 3 S H EF 5 3 1 D,F,G 4 6 CG 3 5 K H 4 3 L HI 4 3 M SKL 7
