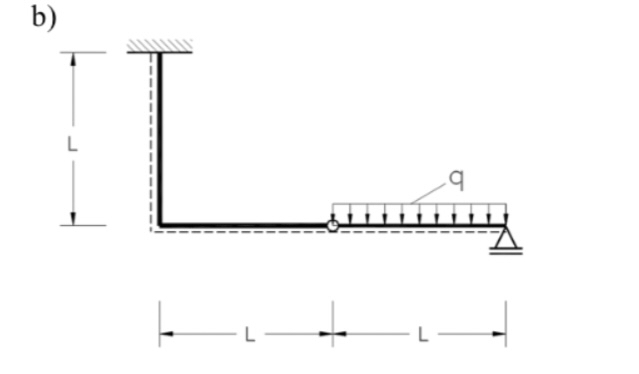

For the given structural systems plot the deformedshapes, indicating any points of inflection, anddetermine quantitatively the complete $($all values needed to fully define the internal force functionsneedto be provided$)$ internal force state and showgraphically the Bending Moment $($M$),$ ShearForce $($V$)$and Axial Force $($N$)$ diagrams. $($E$,$ I $=$ constant andA $=).$ Use the concepts presented in class for rapiddetermination of these diagrams instead ofextensiveuse of the method of sections or the determination ofthe internal force functions. However, do not guess!When in doubt, go back to the noted fundamentaL approaches. SHOW THE DEFORMED SHAPE.SHOW POSITIVE BMD ON BOTTOMb$)$

b llcorner $$ llcorner
