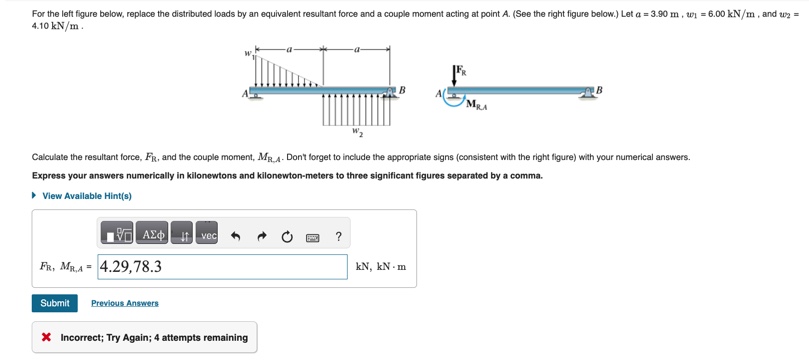

For the left figure below, replace the distributed loads by an equivalent resultant force and a couple moment acting at point $A.($See the right figure below.$)$ Let $a=3\mathrm{.}90m,$

$w_1=6\mathrm{.}00k\frac{N}{m},$ and $w_2=4\mathrm{.}10k\frac{N}{m}.$

Calculate the resultant force, $F_R,$ and the couple moment, $M_{R,A}.$ Don't forget to include the appropriate signs $($consistent with the right figure$)$ with your numerical answers.

Express your answers numerically in kilonewtons and kilonewton$-$meters to three significant figures separated by a comma.

View Available Hint$($s$)$

$F_R,M_{R,A}=,kN,kN*m$For the left figure below, replace the distributed loads by an equivalent resultant force and a couple moment acting at point $A.($See the right figure below.$)$ Let $a=3\mathrm{.}90m,w_1=6\mathrm{.}00k\frac{N}{m},$ and $w_2=$

$4\mathrm{.}10k\frac{N}{m}.$

Calculate the resultant force, $F_R,$ and the couple moment, $M_{R,A}.$ Don't forget to include the appropriate signs $($consistent with the right figure$)$ with your numerical answers.

Express your answers numerically in kilonewtons and kilonewton$-$meters to three significant figures separated by a comma.

View Available Hint$($s$)$

$F_R,M_{R,A}=$

$kN,kN*m$
