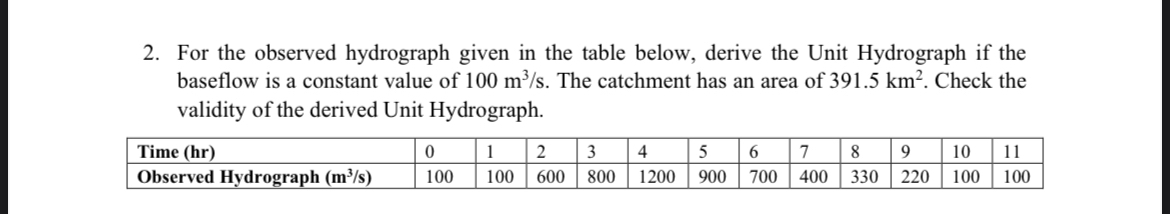

Question: For the observed hydrograph given in the table below, derive the Unit Hydrograph if the baseflow is a constant value of 1 0 0 m

For the observed hydrograph given in the table below, derive the Unit Hydrograph if the baseflow is a constant value of 100m3s. The catchment has an area of 391.5km2. Check the validity of the derived Unit Hydrograph.
\table[[Time (hr),0,1,2,3,4,5,6,7,8,9,10,11],[Observed Hydrograph (m3s),100,100,600,800,1200,900,700,400,330,220,100,100]]
For the observed hydrograph given in the table

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
