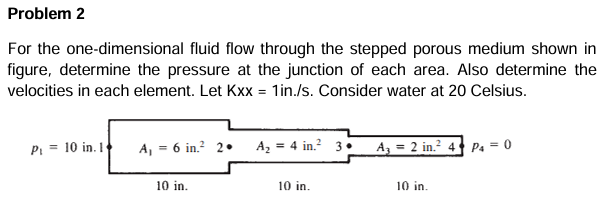

Question: For the one - dimensional fluid flow through the stepped porous medium shown in figure, determine the pressure at the junction of each area. Also

For the one-dimensional fluid flow through the stepped porous medium shown in figure, determine the pressure at the junction of each area. Also determine the velocities in each element. Let Kxx =1in./s.Consider water at 20Celsius. The pressure at point 1, p1, should be multiplied by (rho)*g in order to have pressure units.
Please don't use a matrix approach. Instead, use a node-by-node one.
