Question: For the points p 1 ( 1 , 1 ) , p 2 ( 3 , 1 ) , p 3 ( 4 , 2

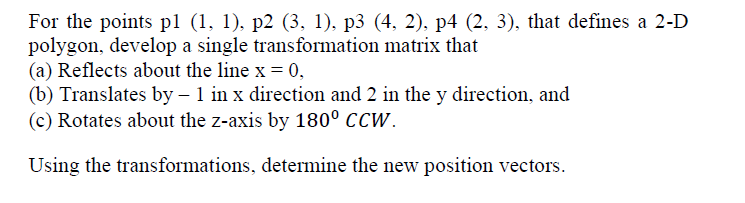

For the points p1(1,1),p2(3,1),p3(4,2),p4(2,3), that defines a 2-D
polygon, develop a single transformation matrix that
(a) Reflects about the line x=0,
(b) Translates by -1 in x direction and 2 in the y direction, and
(c) Rotates about the z-axis by 180\deg CCW.
Using the transformations, determine the new position vectors.
For the points p 1 ( 1 , 1 ) , p 2 ( 3 , 1 ) , p
