Question: For the retaining wall shown in the figure below, construct the active lateral earth pressure on the wall using the Rankine's theory. Determine the total

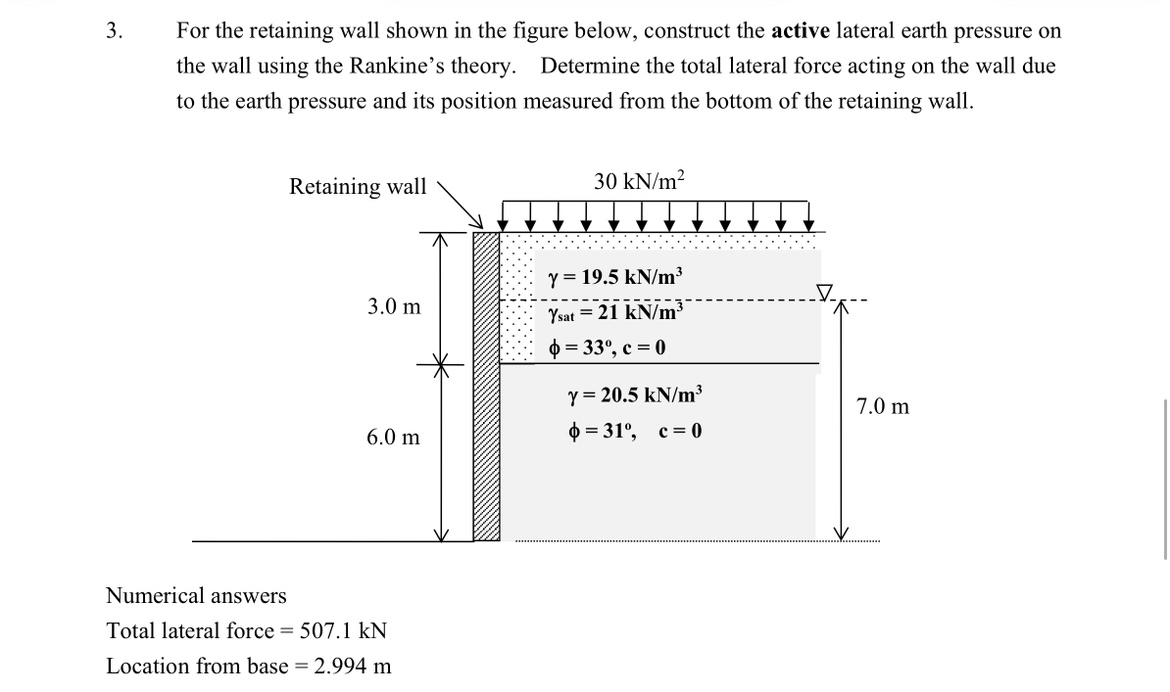

For the retaining wall shown in the figure below, construct the active lateral earth pressure on the wall using the Rankine's theory. Determine the total lateral force acting on the wall due to the earth pressure and its position measured from the bottom of the retaining wall.

Numerical answers

Total lateral force

= 507.1 k N

Location from base

= 2.994 m

For the retaining wall shown in the figure below,

Step by Step Solution

There are 3 Steps involved in it
