Question: For the state table given below, complete the following two problems. ( a ) Complete a state transition diagram, showing the behavior of this state

For the state table given below, complete the following two problems.

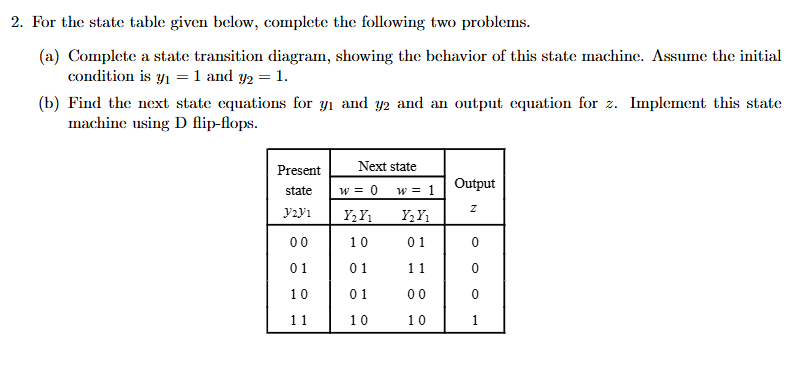

(a) Complete a state transition diagram, showing the behavior of this state machine. Assume the initial
condition is y_(1)=1 and y_(2)=1.
(b) Find the next state equations for y_(1) and y_(2) and an output equation for z. Implement this state
machine using D flip-flops.
For the state table given below, complete the

Step by Step Solution

There are 3 Steps involved in it
