Question: For the system shown: a ) ( 1 pt ) Obtain the equivalent spring and damper for the system b ) ( 1 pt )

For the system shown:

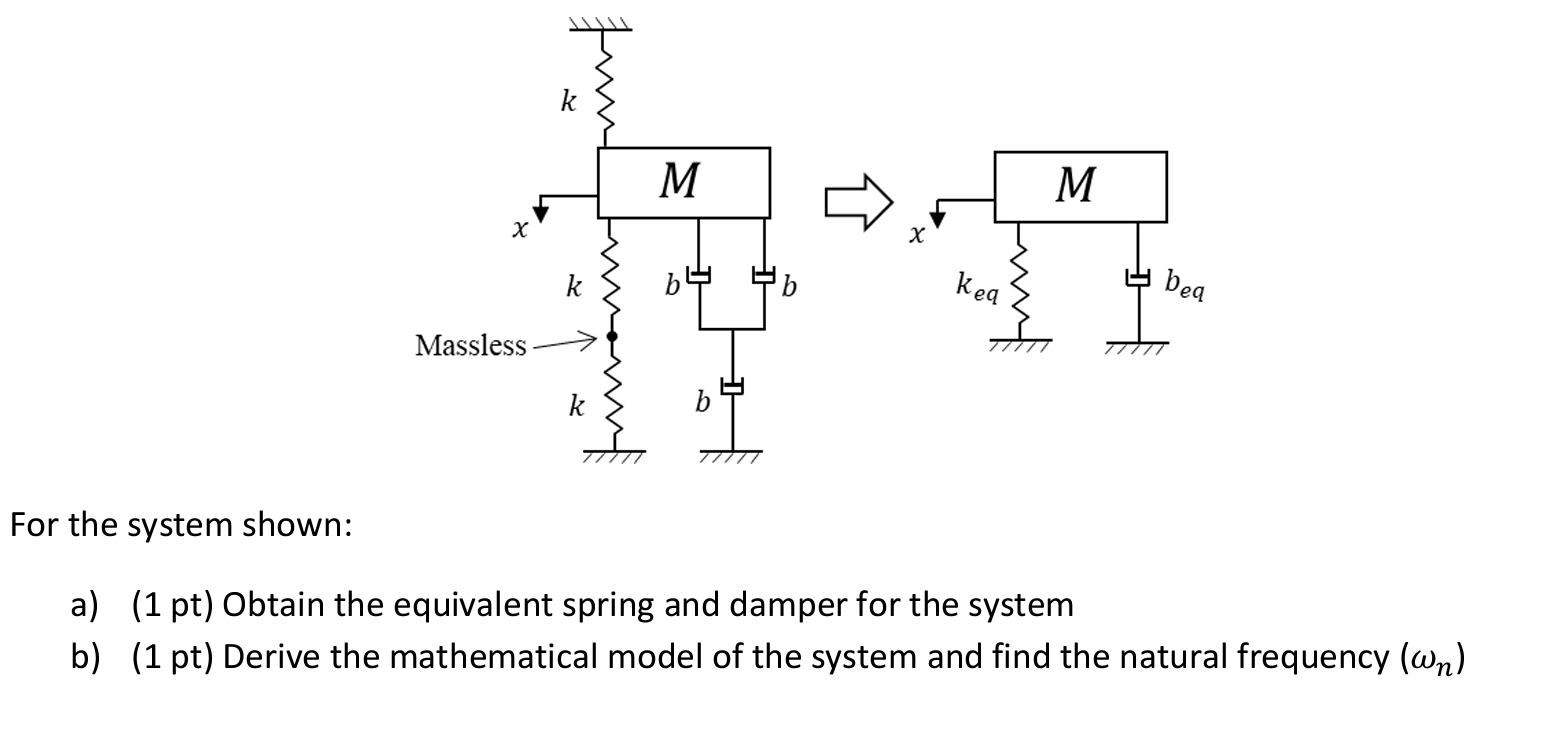

a)(1 pt) Obtain the equivalent spring and damper for the system
b)(1 pt) Derive the mathematical model of the system and find the natural frequency (n)
For the system shown: a ) ( 1 pt ) Obtain the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
