Question: For the system shown below, a pump is used to transport water from reservoir - A to reservoir - B . Based on the relative

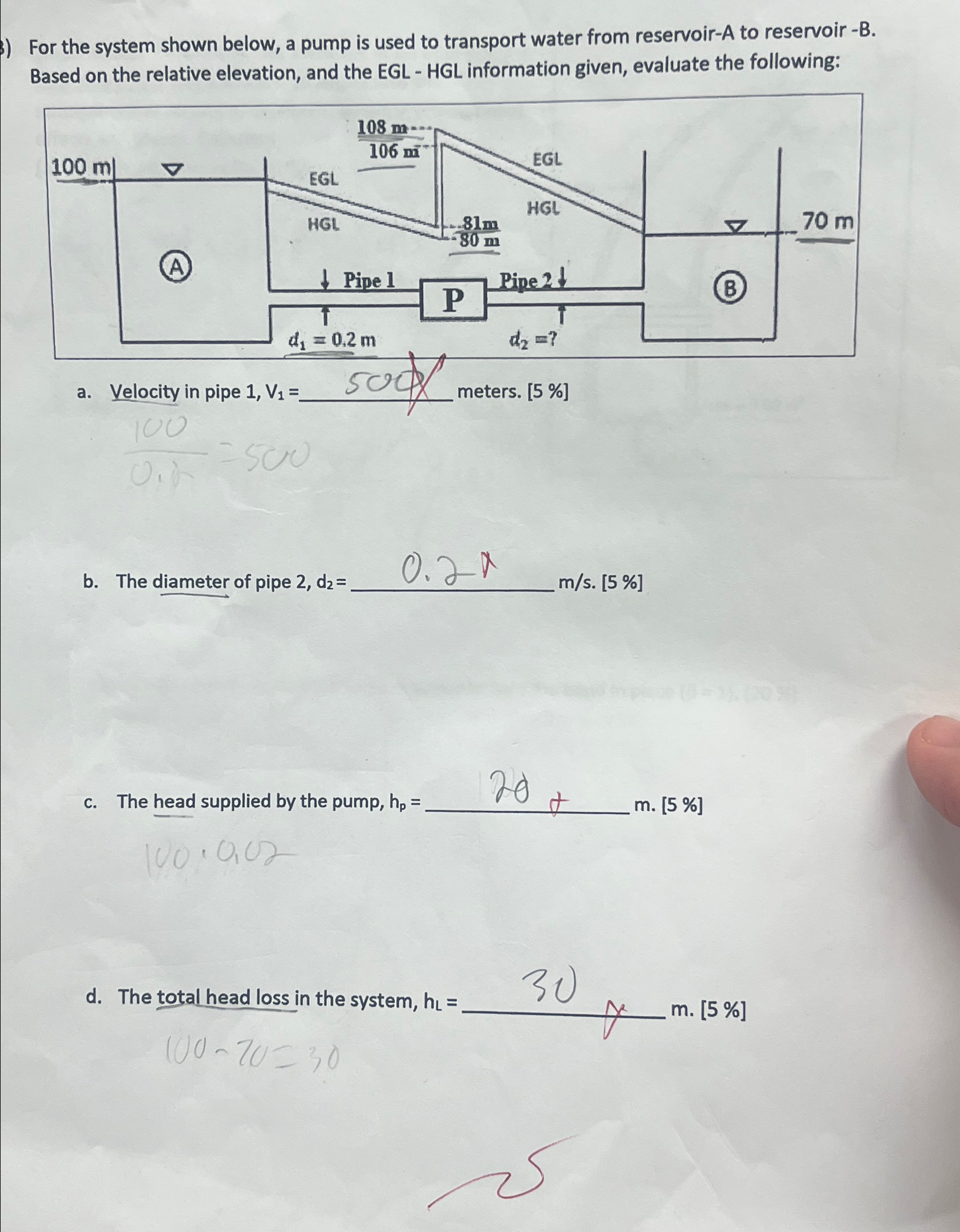

For the system shown below, a pump is used to transport water from reservoir-A to reservoir -B. Based on the relative elevation, and the EGL - HGL information given, evaluate the following:
b. The diameter of pipe 2,d2ms.[5%]
c. The head supplied by the pump, hp
m.5%
d. The total head loss in the system, hL=,30 m.5%
For the system shown below, a pump is used to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
