Question: For the system shown below, the outflow is 0 . 2 m 3 / s . The diameter of the pipe is 6 0 cm

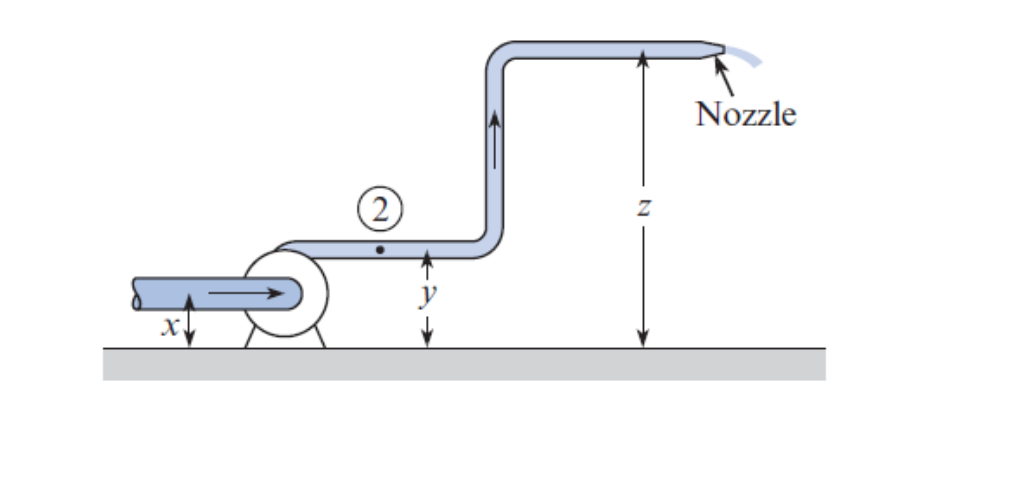

For the system shown below, the outflow is 0.2 m3/s. The diameter of the pipe is 60 cm and that of the spout is 10 cm. The elevations are x=1.0m, y=1.5m and z=6.0m. Total losses are estimated at 0.5m. Determine the velocity in the pipe, the velocity at the outlet of the pipe, and the pressure head at point 2(P2/y). Assume =1.
