Question: For the thin - walled single - cell closed section shown below, determine ( 1 ) the shear flow distribution for shear force V y

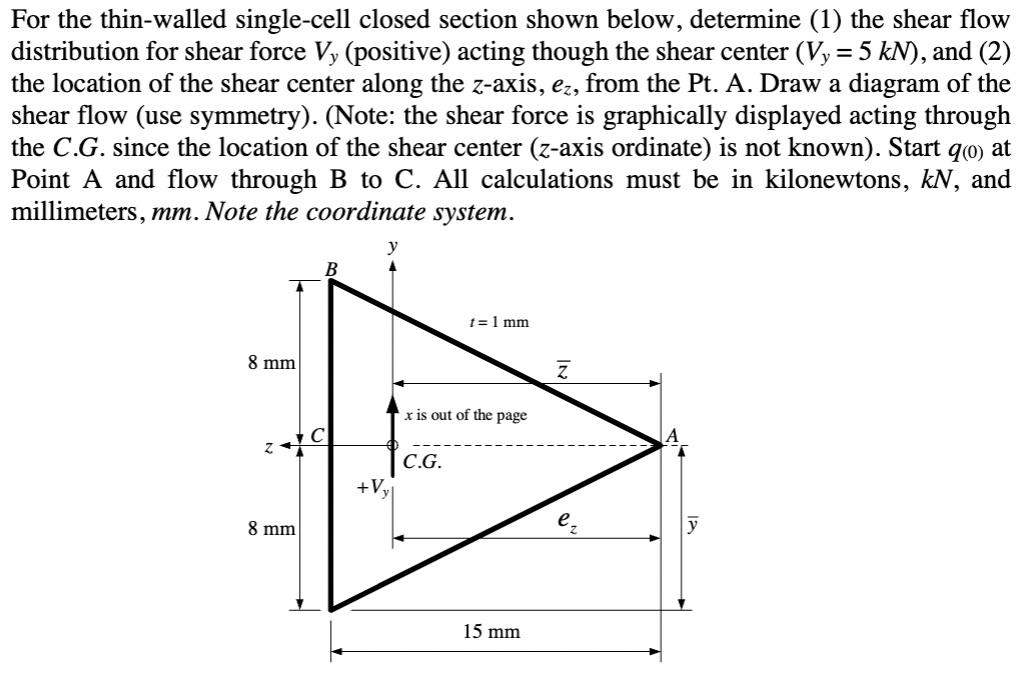

For the thin-walled single-cell closed section shown below, determine (1) the shear flow distribution for shear force Vy(positive) acting though the shear center (Vy=5kN), and (2) the location of the shear center along the z-axis, ez, from the Pt. A. Draw a diagram of the shear flow (use symmetry).(Note: the shear force is graphically displayed acting through the C.G. since the location of the shear center (z-axis ordinate) is not known). Start q(0) at Point A and flow through B to C. All calculations must be in kilonewtons, kN, and millimeters, mm . Note the coordinate system.
For the thin - walled single - cell closed

Step by Step Solution
