Question: For the transistor > 1 0 0 , V B E ( O N ) = 0 . 6 3 V , and C C

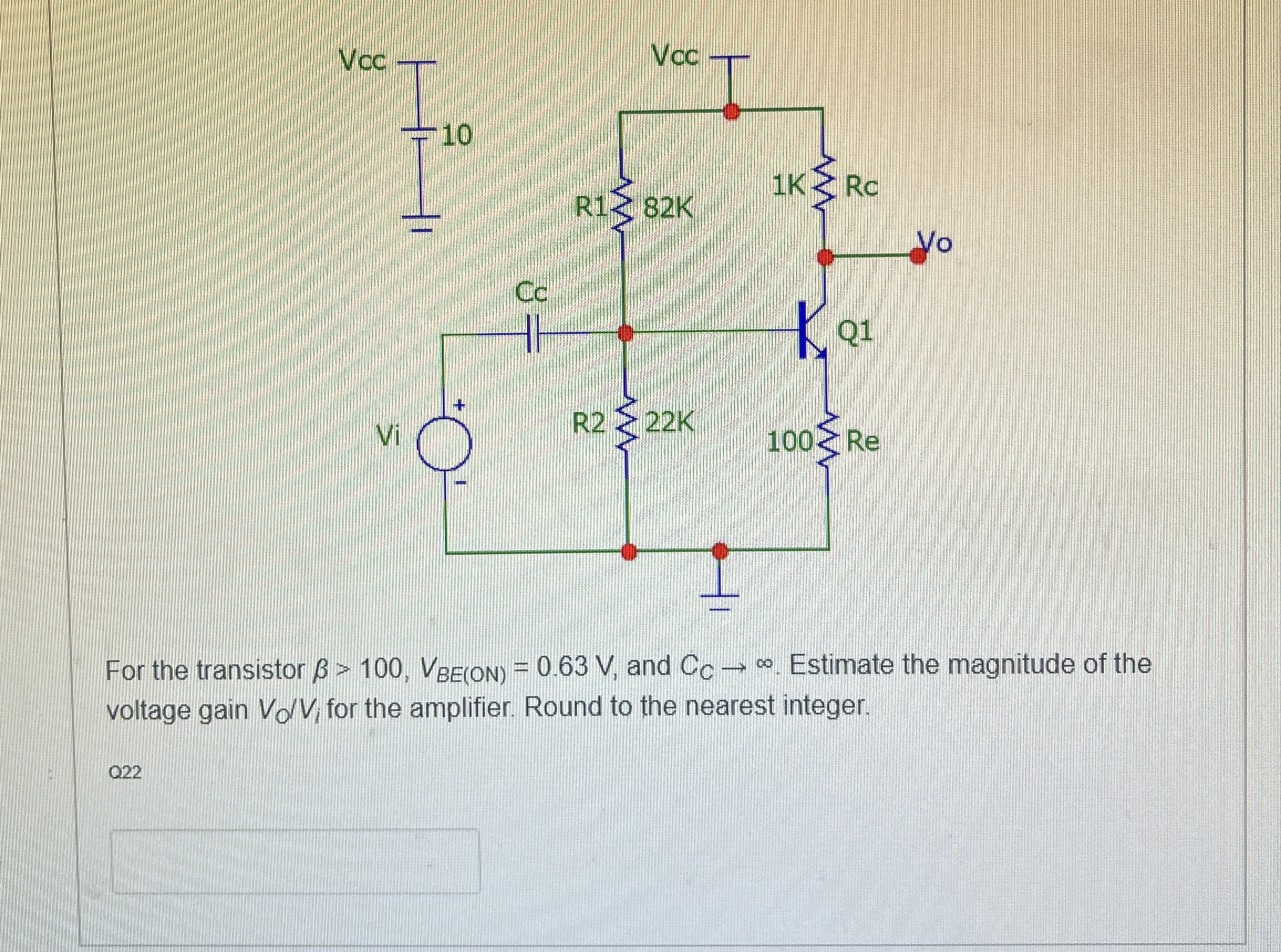

For the transistor >100,VBE(ON)=0.63V, and CC. Estimate the magnitude of the voltage gain VOVi for the amplifier. Round to the nearest integer.
022
For the transistor > 1 0 0 , V B E ( O N ) = 0 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
