Question: For the truss above, determine the reactions at points E and F . Then, using the method of sections, determine the member forces of A

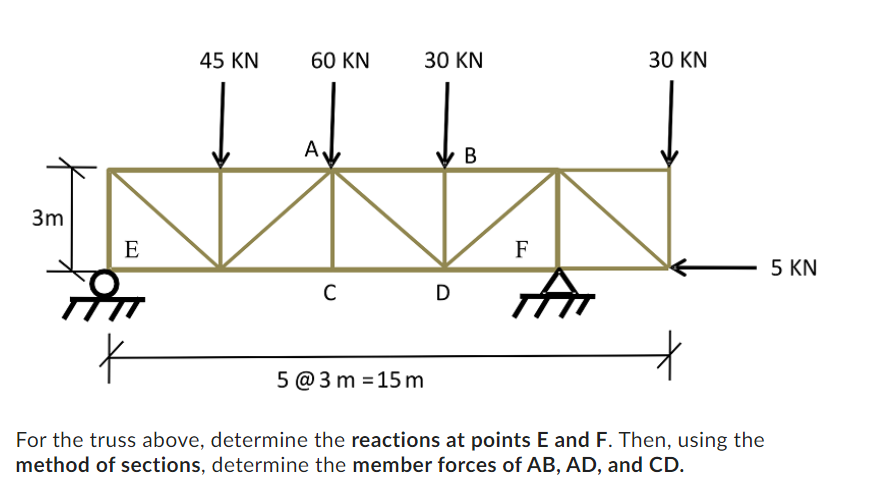

For the truss above, determine the reactions at points E and F. Then, using the method of sections, determine the member forces of AB,AD, and CD. REACTIONS:
MEMBER FORCES:
For the truss above, determine the reactions at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
