Question: For the truss shown below: 1 - Check for determinacy and stability 2 - Using the method of section determine the force in members A

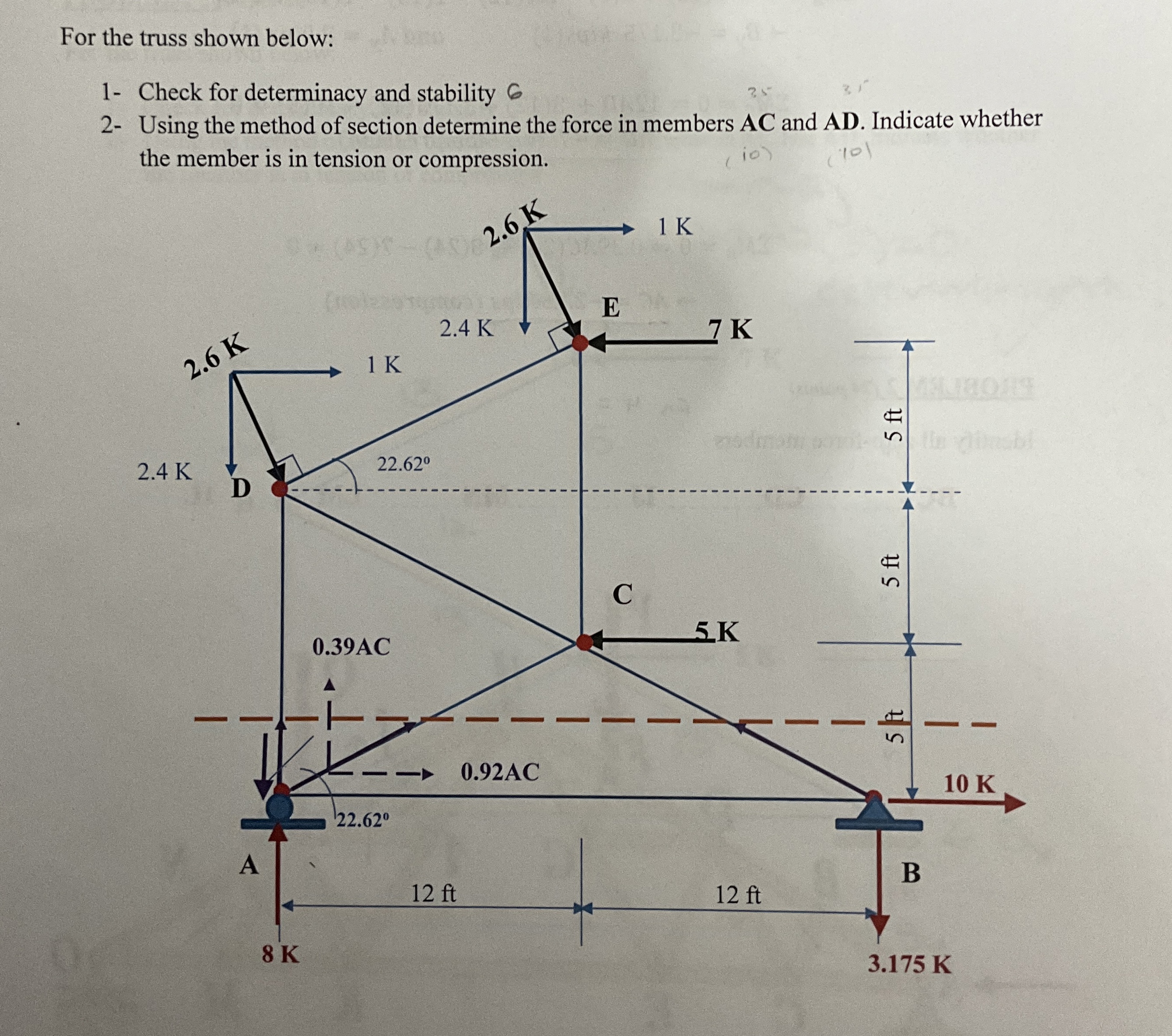

For the truss shown below:
1- Check for determinacy and stability
2- Using the method of section determine the force in members AC and AD. Indicate whether
the member is in tension or compression.
For the truss shown below: 1 - Check for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
