Question: For the wall below ( O C R = 1 ) , determine: a . At - rest lateral earth force per unit length of

For the wall below (OCR=1), determine:

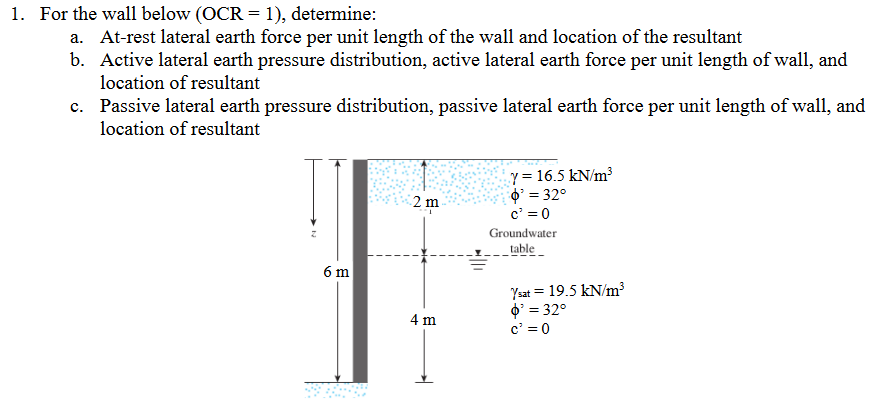

a. At-rest lateral earth force per unit length of the wall and location of the resultant
b. Active lateral earth pressure distribution, active lateral earth force per unit length of wall, and location of resultant
c. Passive lateral earth pressure distribution, passive lateral earth force per unit length of wall, and location of resultant
For the wall below ( O C R = 1 ) , determine: a .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
