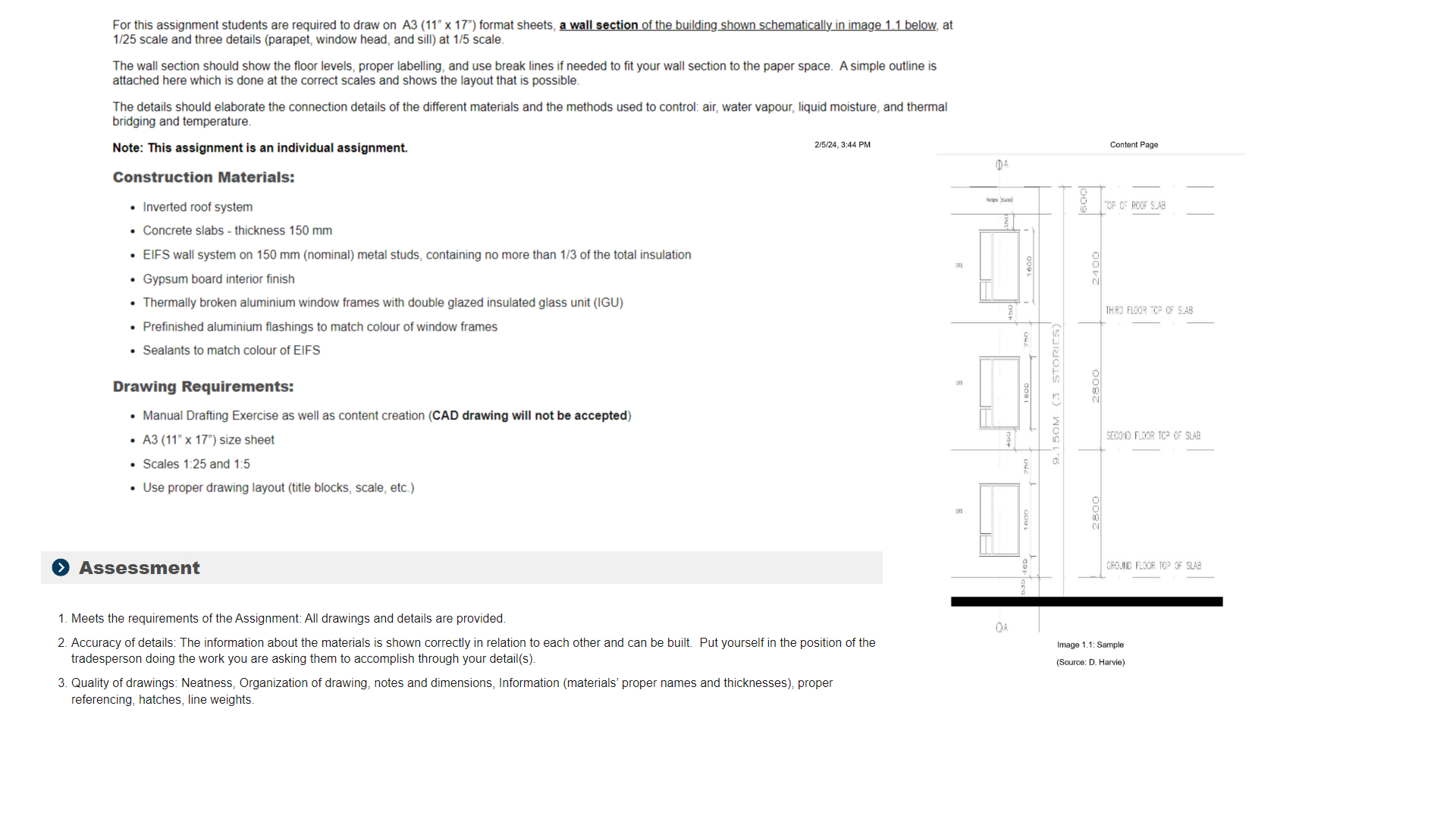

For this assignment students are required to draw on $A3({11}^{\text{'}\text{'}}{17}^{\text{'}\text{'}})$ format sheets, a wall section of the building shown schematically in image $1\mathrm{.}1$ below, at

$\frac{1}{25}$ scale and three details $($parapet$,$ window head, and sill$)$ at $\frac{1}{5}$ scale

The wall section should show the floor levels, proper labelling, and use break lines if needed to fit your wall section to the paper space. A simple outline is

attached here which is done at the correct scales and shows the layout that is possible.

The details should elaborate the connection details of the different materials and the methods used to control: air, water vapour, liquid moisture, and thermal

bridging and temperature.

Note: This assignment is an individual assignment.

Construction Materials:

Inverted roof system

Concrete slabs $-$ thickness $150mm$

EIFS wall system on $150mm($nominal$)$ metal studs, containing no more than $\frac{1}{3}$ of the total insulation

Gypsum board interior finish

Thermally broken aluminium window frames with double glazed insulated glass unit $($IGU$)$

Prefinished aluminium flashings to match colour of window frames

Sealants to match colour of EIFS

Drawing Requirements:

Manual Drafting Exercise as well as content creation $($CAD drawing will not be accepted$)$

A$3({11}^{\text{'}\text{'}}{17}^{\text{'}\text{'}})$ size sheet

Scales $1$:$25$ and $1$:$5$

Use proper drawing layout $($title blocks, scale, etc.$)$

Assessment

Meets the requirements of the Assignment: All drawings and details are provided.

Accuracy of details: The information about the materials is shown correctly in relation to each other and can be built. Put yourself in the position of the

tradesperson doing the work you are asking them to accomplish through your detail$($s$).$

Quality of drawings: Neatness, Organization of drawing, notes and dimensions, Information $($materials$\text{'}$ proper names and thicknesses$),$ proper

referencing, hatches, line weights.
