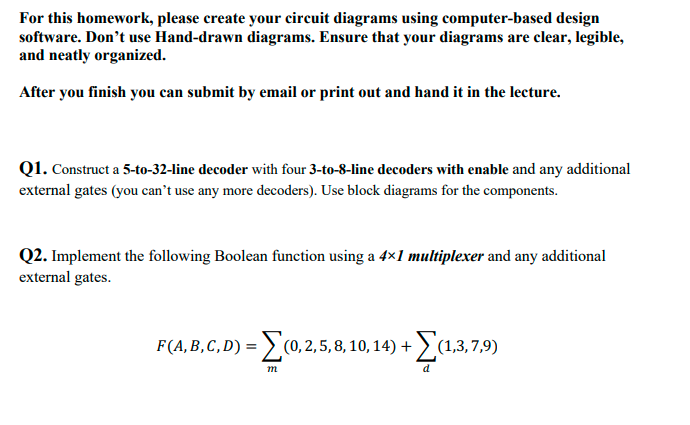

For this homework, please create your circuit diagrams using computer$-$based design

software. Don't use Hand$-$drawn diagrams. Ensure that your diagrams are clear, legible,

and neatly organized.

After you finish you can submit by email or print out and hand it in the lecture.

Q$1.$ Construct a $5-$to$-32-$line decoder with four $3-$to$-8-$line decoders with enable and any additional

external gates $($you can't use any more decoders$).$ Use block diagrams for the components.

Q$2.$ Implement the following Boolean function using a $41$ multiplexer and any additional

external gates.

$F(A,B,C,D)={\displaystyle \underset{m}{\overset{?}{}}}(0,2,5,8,10,14)+{\displaystyle \underset{d}{\overset{?}{}}}(1,3,7,9)$
