Question: For this problem, there are 3 variables. x2 is the most significant bit (leftmost) and x0 is the least significant (rightmost). This means that m4

For this problem, there are 3 variables. x2 is the most

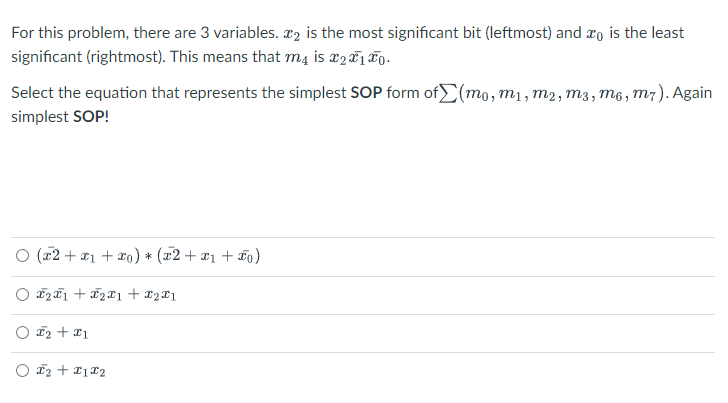

For this problem, there are 3 variables. x2 is the most significant bit (leftmost) and x0 is the least significant (rightmost). This means that m4 is x2x1x0. Select the equation that represents the simplest SOP form of (m0,m1,m2,m3,m6,m7). Again simplest SOP! (x2+x1+x0)(x2+x1+x0)x2x1+x2x1+x2x1x2+x1x2+x1x2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock

To find the simplest Sum of Products SOP form for the given minterms m0 m1 m2 m3 m6 m7 lets first ex... View full answer

blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
