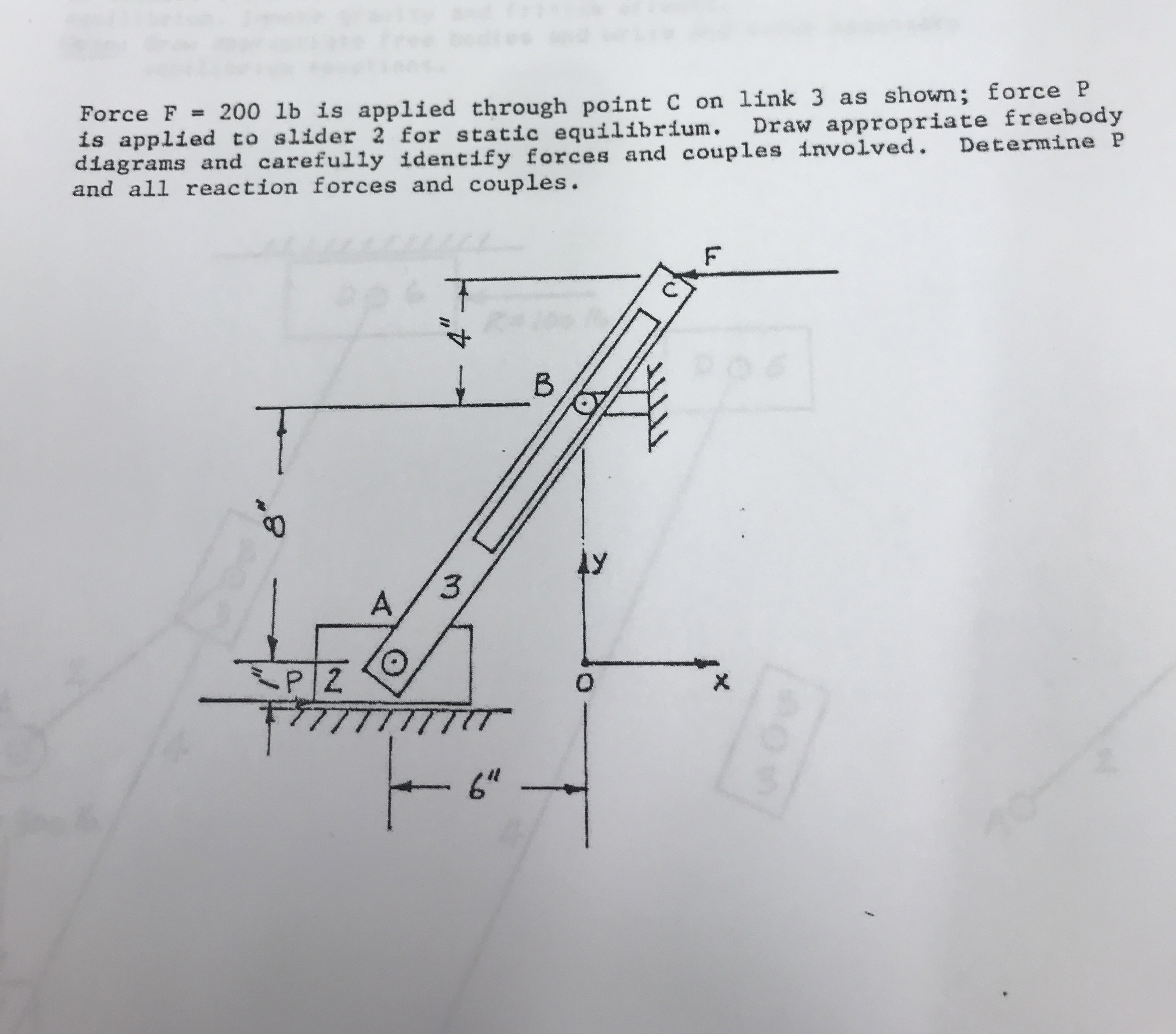

Question: Force F = 2 0 0 l b is applied through point C on link 3 as shown; force P is applied to slider 2

Force

F = 200 l b

is applied through point

C

on link

3

as shown; force

P

is applied to slider

2

for static equilibrium. Draw appropriate freebody dlagrams and carefully identify forces and couples involved. Determine P and all reaction forces and couples.

Force F = 2 0 0 l b is applied through point C on

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
