Question: Four capacitors are connected across a 36-V voltage source as shown in the figure. C1 = 3.0 uF, C2 = 6.0 uF, C3 = 3.0

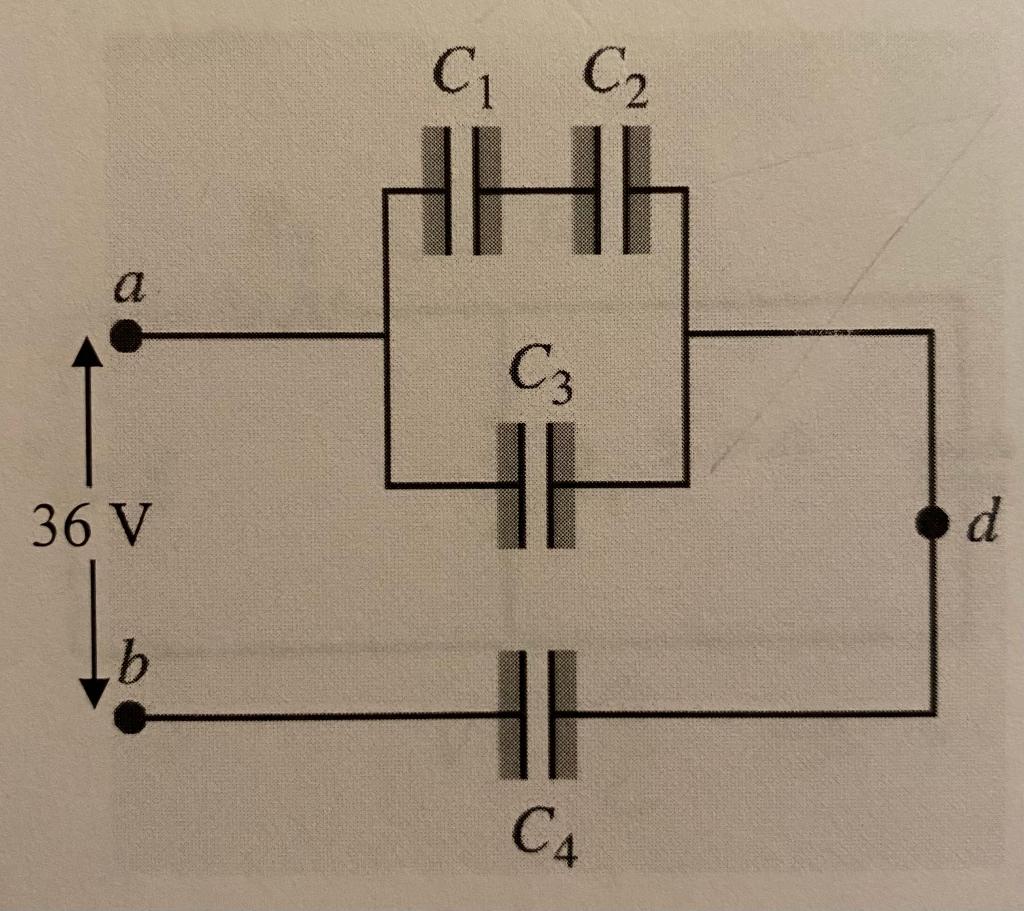

Four capacitors are connected across a 36-V voltage source as shown in the figure.

C1 = 3.0 uF, C2 = 6.0 uF, C3 = 3.0 uF, C4 = 5.0 uF.

Find that charge on each capacitor

Four capacitors are connected across a 36-V voltage source as shown in

C1 62 a C3 d 36 V b CA

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
