Question: Four charges, each either + Q or - Q , are arranged at the corners of a square as shown. Which of the arrows gives

Four charges, each either

+ Q

- Q,

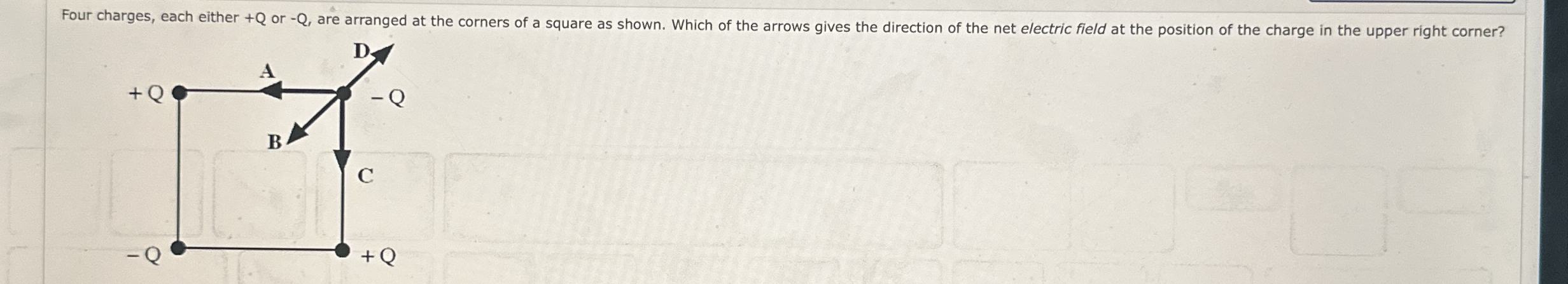

are arranged at the corners of a square as shown. Which of the arrows gives the direction of the net electric field at the position of the charge in the upper right corner?

Four charges, each either + Q or - Q , are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
