Question: Friction 7 - 1 4 . Determine the minimum force P that will cause either tipping or sliding of the block shown in Figure P

Friction
7-14. Determine the minimum force P that will cause either tipping or sliding of the block shown in Figure P7-14. The coefficient of static friction is 0.7.

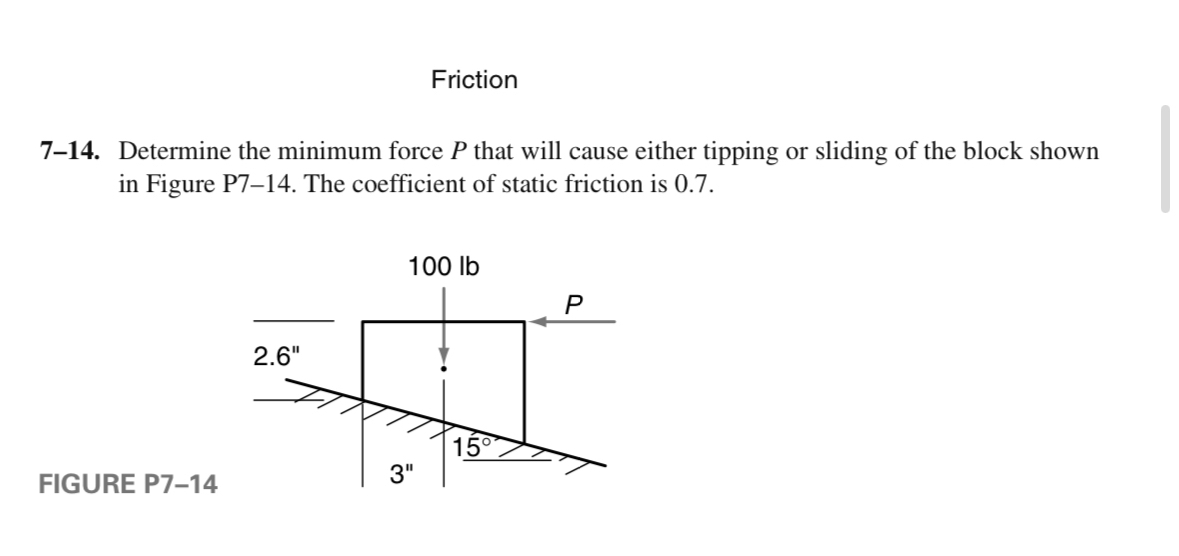

FIGURE P7-14
Friction 7 - 1 4 . Determine the minimum force P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
