Question: From the above table a. Draw a network diagram showing early start time, latest finish time, and duration of an activity . 30 Marks b.

From the above table a. Draw a network diagram

From the above table

a. Draw a network diagram showing early start time, latest finish time, and duration of an activity. 30 Marks

b. Identify the critical activities and the critical path. 10 Marks.

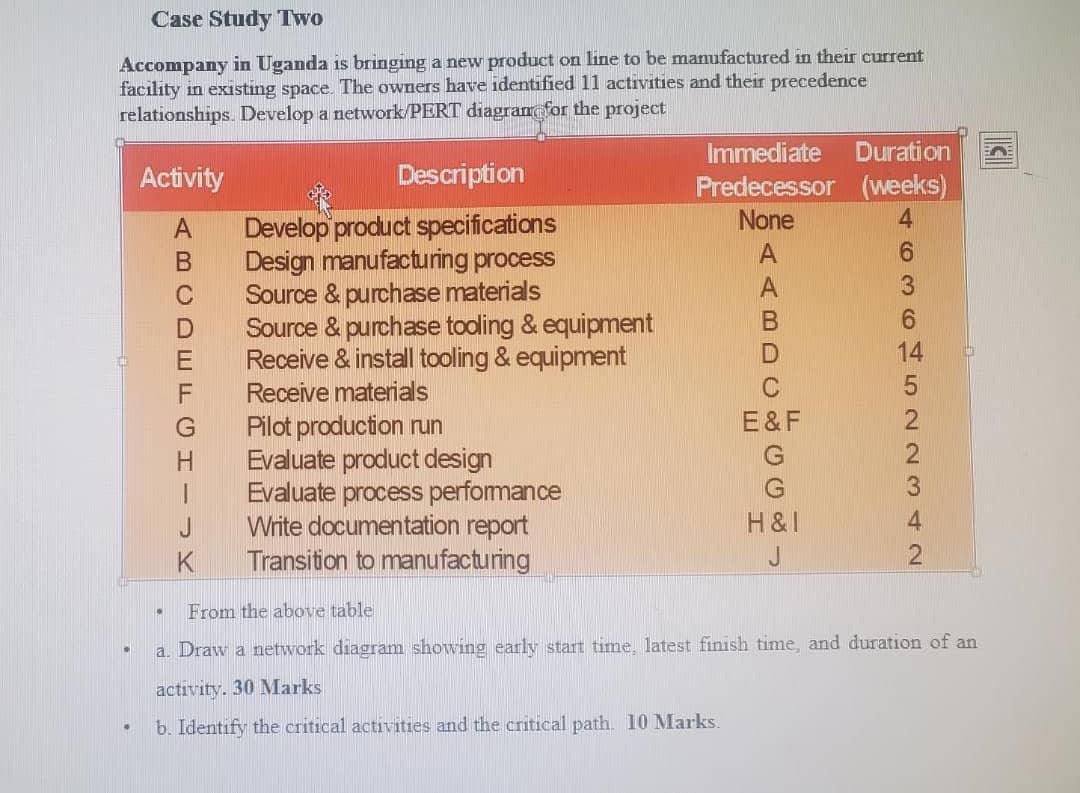

Case Study Two Accompany in Uganda is bringing a new product on line to be manufactured in their current facility in existing space. The owners have identified 11 activities and their precedence relationships. Develop a network/PERT diagranc for the project - From the above table a. Draw a network diagram showing early start time, latest finish time, and duration of an activity. 30 Marks b. Identify the critical activities and the critical path. 10 Marks

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
