Question: From the circuit below, solve for ( in polar notationa ) : Total Impedance ( Z total ) - start from right to left in

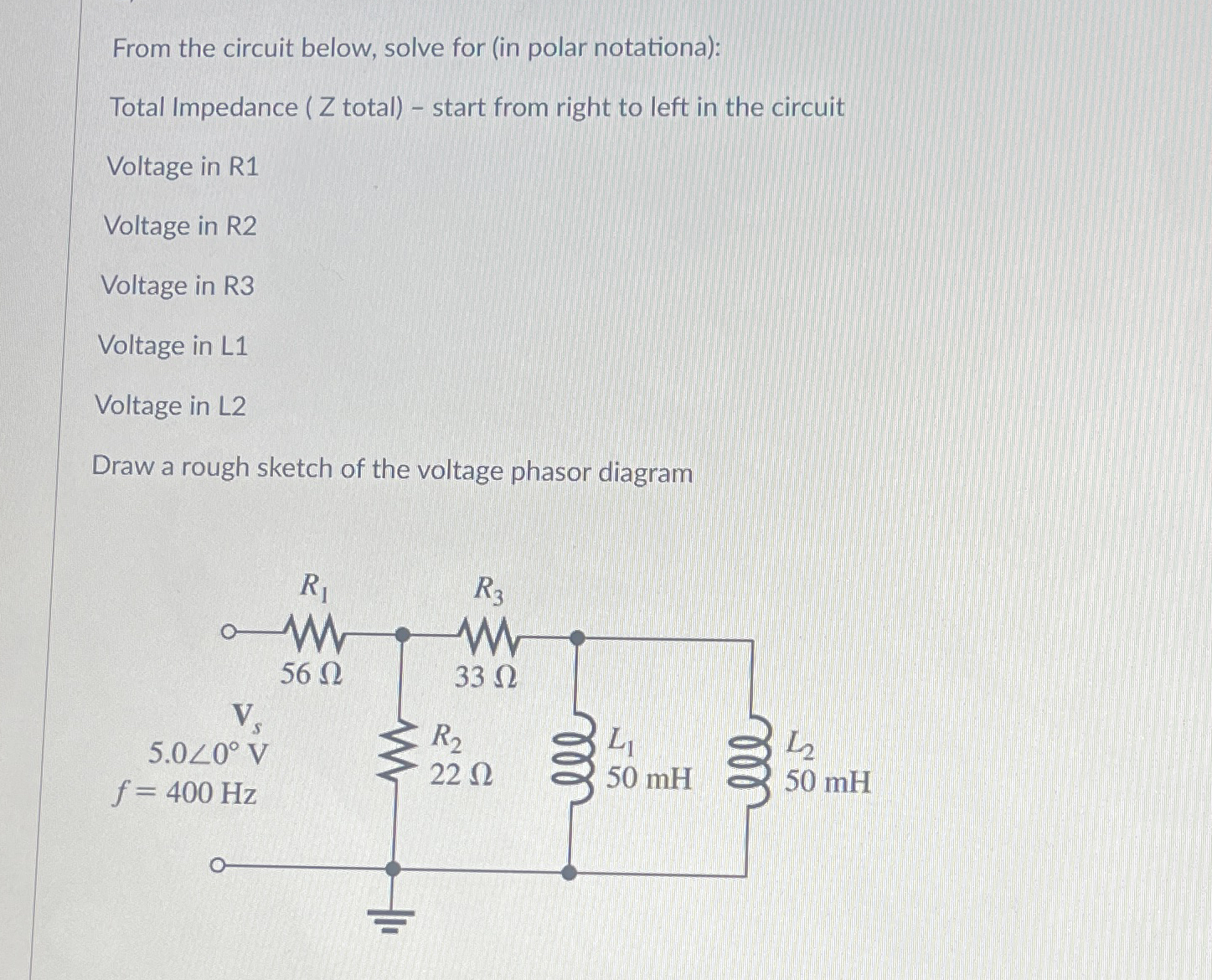

From the circuit below, solve for (in polar notationa):
Total Impedance ( Z total)- start from right to left in the circuit
Voltage in R1
Voltage in R2
Voltage in R3
Voltage in L1
Voltage in L2
Draw a rough sketch of the voltage phasor diagram
From the circuit below, solve for ( in polar

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
