Question: full solution please use the method I used URGENT ASAAP !!! Problem 2: (25 points) The following fluid system is given. There are three tanks.

full solution please

use the method I used

URGENT ASAAP !!! full solution please use the method I used URGENT ASAAP !!! Problem

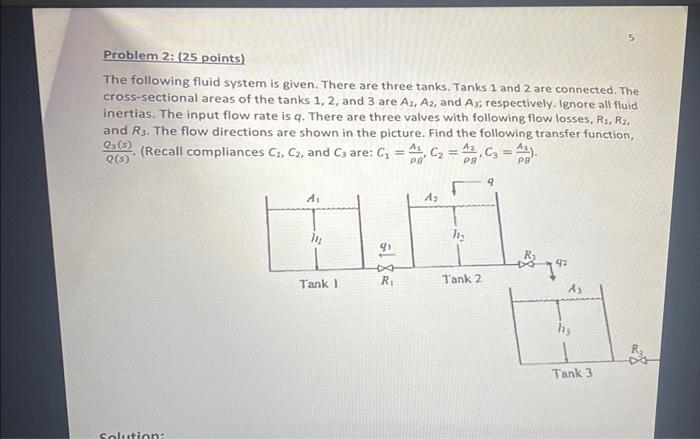

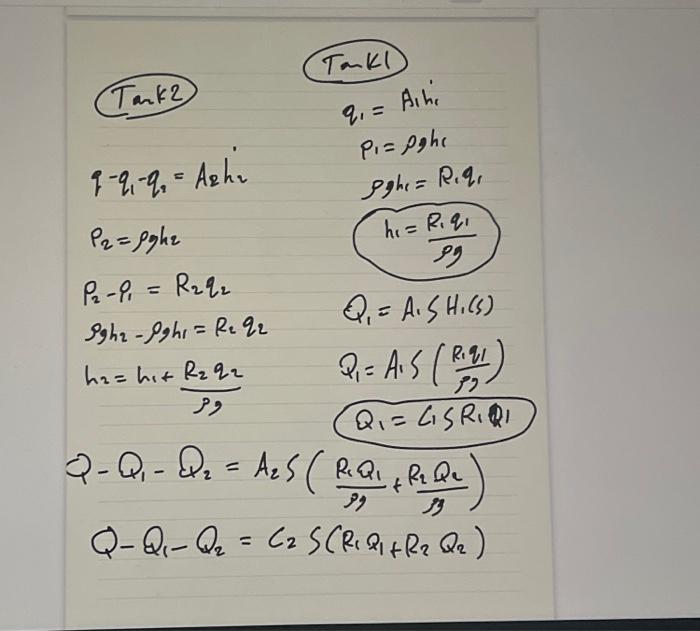

Problem 2: (25 points) The following fluid system is given. There are three tanks. Tanks 1 and 2 are connected. The cross-sectional areas of the tanks 1,2 , and 3 are A1,A2, and A3; respectively. 1 gnore all fluid inertias. The input flow rate is q. There are three valves with following flow losses, R2,R2, and R3. The flow directions are shown in the picture. Find the following transfer function, Q(s)Q1(s), (Recall compliances C1,C2, and C3 are: C1=gA1,C2=gA2,C3=gA3 ). (Tank2) qq1q2=A2h2 q1=A1h1p1=ghc1 P2=ghr gh1=R1q1 p2p1=R2q2 gh2gh1=R2q2 Q1=A1SH1(S) h2=h1+?R2q2 Q1=A1S(2R1q1)Q1=C1SR1Q1 QQ1Q2QQ1Q2=A2S(gR1Q1+gR2Q2)=C2S(R1Q1+R2Q2)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
