Question: FULL - WAVE RECTIFICATION ( BRIDGE ) Procedure Construct the circuit as shown. If the Oscilloscope has dual trace, set it on that function. Separate

FULL

-

WAVE RECTIFICATION

(

BRIDGE

)

Procedure

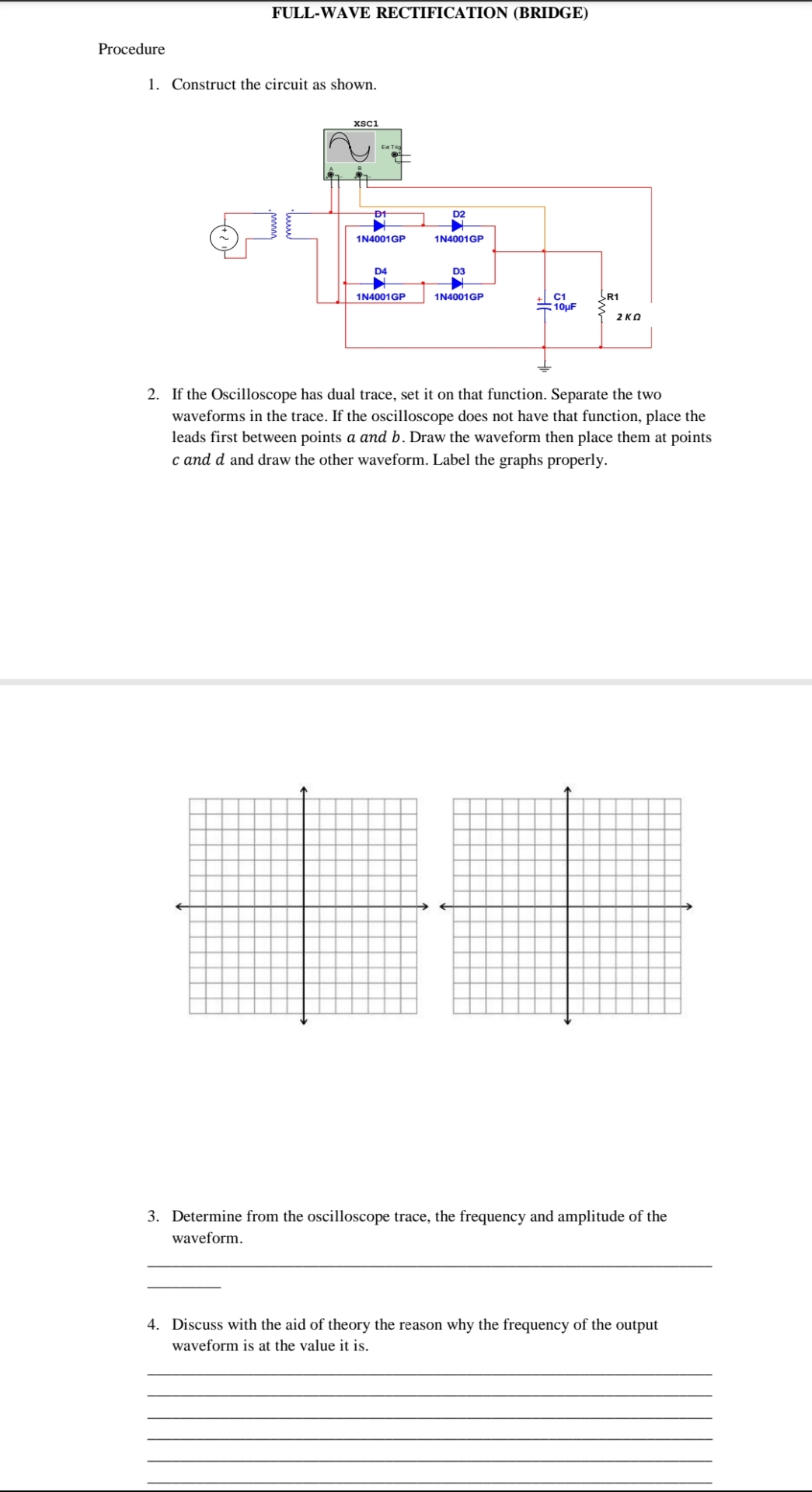

Construct the circuit as shown.

If the Oscilloscope has dual trace, set it on that function. Separate the two waveforms in the trace. If the oscilloscope does not have that function, place the leads first between points a and

b .

Draw the waveform then place them at points

c

and

d

and draw the other waveform. Label the graphs properly.

Determine from the oscilloscope trace, the frequency and amplitude of the waveform.

Discuss with the aid of theory the reason why the frequency of the output waveform is at the value it is

.
