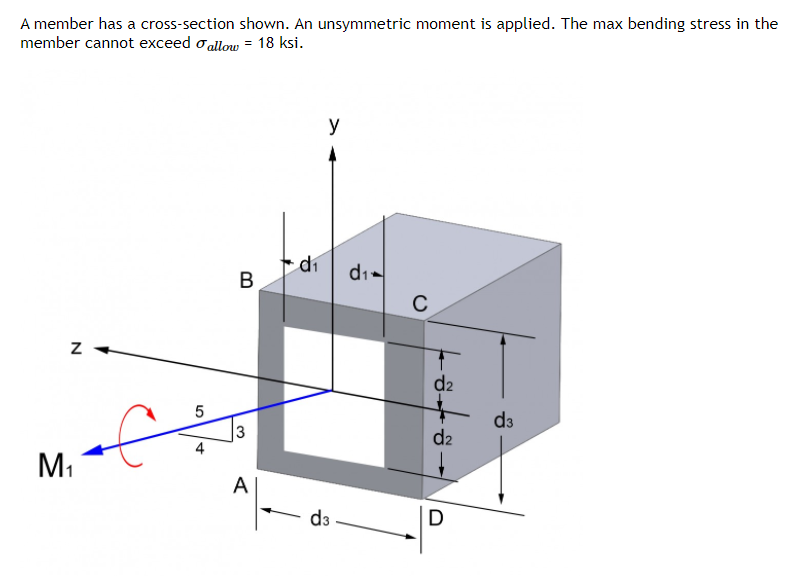

Question: fValues for the figure are given in the following table. Note the figure may not be to scale. Variable Value all 3.5 in d2 3.5

$\fValues for the figure are given in the following table. Note$ the figure may not be to scale. Variable Value all 3.5 in

d2 3.5 in d3 3 in a. Determine the moment of inertia

for the y-axis and z-axis, I3. = I2. b. Which corner experiences

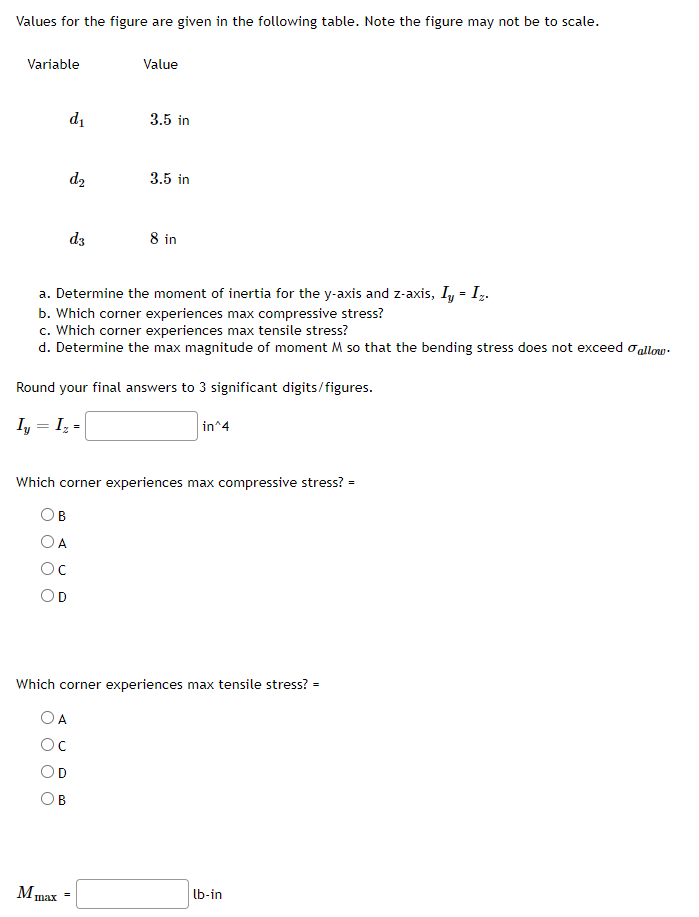

\fValues for the figure are given in the following table. Note the figure may not be to scale. Variable Value all 3.5 in d2 3.5 in d3 3 in a. Determine the moment of inertia for the y-axis and z-axis, I3. = I2. b. Which corner experiences max compressive stress? :3. Which corner experiences max tensile stress? d. Determine the max magnitude of moment M so that the bending stress does not exceed Ugh-aw. Round your final answers to 3 significant digitsr'figures. Which corner experiences max compressive stress? = Which corner experiences max tensile stress? =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
