Question: GE 2 0 4 - Statics Practice Problems - Chapter 6 Using the method of joints, determine the force in each member and state whether

GE 204- Statics
Practice Problems - Chapter 6

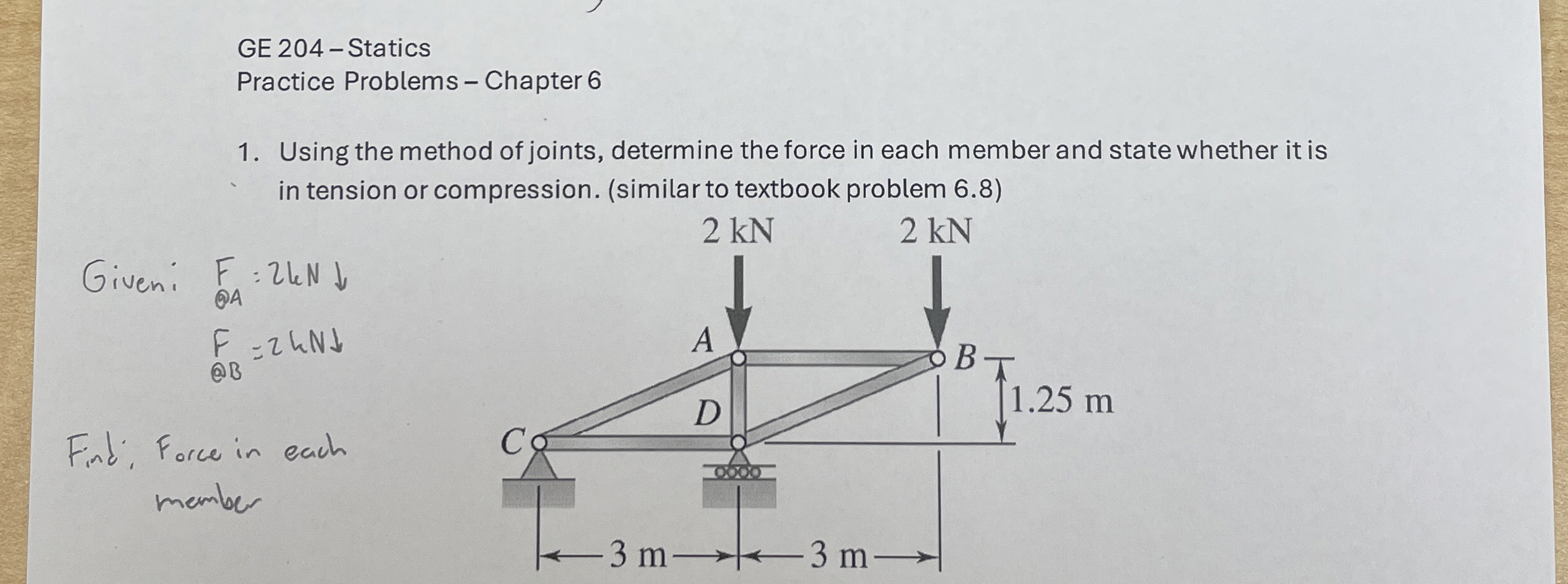

Using the method of joints, determine the force in each member and state whether it is in tension or compression. (similar to textbook problem 6.8)
Given: F=2kNdarr
F=24Ndarr
QB
Find'. Force in each member
GE 2 0 4 - Statics Practice Problems - Chapter 6

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
