Question: General Direction: Write the problems and the complete solutions in the given plate format. Present the solution in the most presentable manner. For file name:

given plate format. Present the solution in the most presentable manner. For

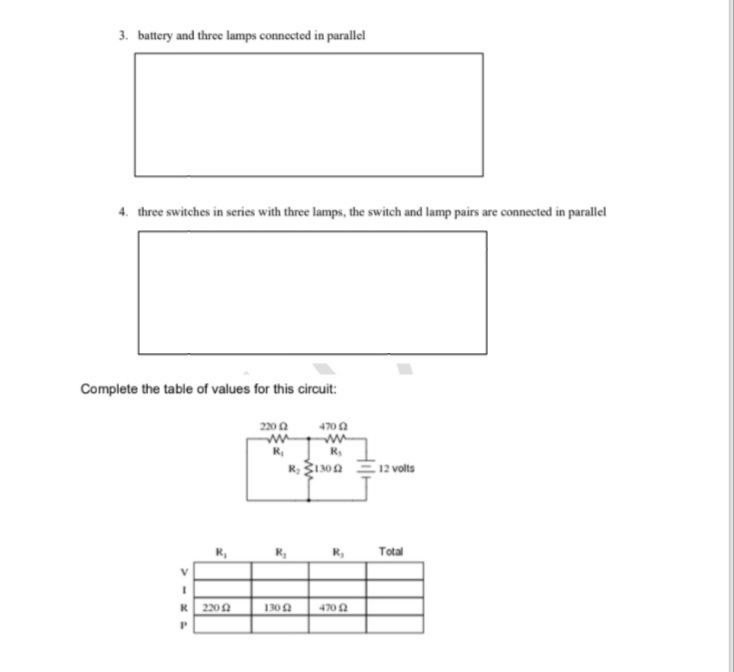

General Direction: Write the problems and the complete solutions in the given plate format. Present the solution in the most presentable manner. For file name: SURNAME_FIRSTNAME Directions: Convert the following descriptions to schematic circuit diagrams. 1. battery, light bulb, switch, all connected in series 2. cell, switch, two lamps, all connected in series3. battery and three lamps connected in parallel 4. three switches in series with three lamps, the switch and lamp pairs are connected in parallel Complete the table of values for this circuit: 220 0 470 0 M MMA - 12 volts Total 230 0 130 0 470 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
