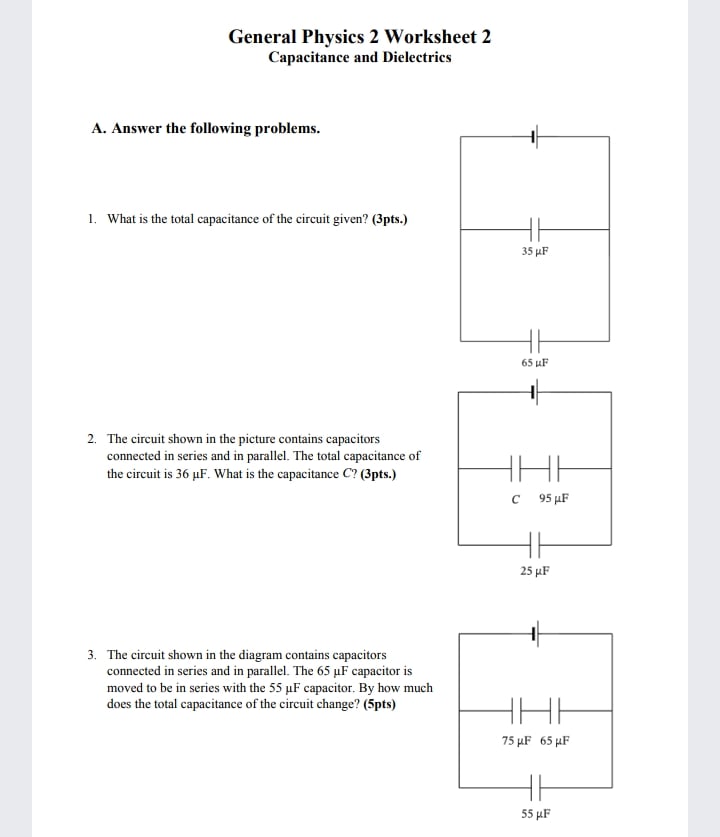

General Physics 2 Worksheet 2 Capacitance and Dielectrics A. Answer the following problems. 1. What is the total capacitance of the circuit given? (3pts.) 35 UF 65 UF 2. The circuit shown in the picture contains capacitors connected in series and in parallel. The total capacitance of the circuit is 36 uF. What is the capacitance C? (3pts.) C 95 ULF 25 HF 3. The circuit shown in the diagram contains capacitors connected in series and in parallel. The 65 pF capacitor is moved to be in series with the 55 pF capacitor. By how much does the total capacitance of the circuit change? (5pts) 75 pF 65 PF 55 UF4. A 69 uF capacitor and a 143 uF capacitor can be combined either in series or in parallel. Find the ratio of the total capacitance in parallel to the total capacitance in series. Give your answer to two decimal places. (4pts.) 5. Find the total capacitance of the combination of capacitors shown below. (10pts) 5.0 UF 1.5 UF 8.0 HF 3.5 ULF I 0.75 ULF 15 UF T
