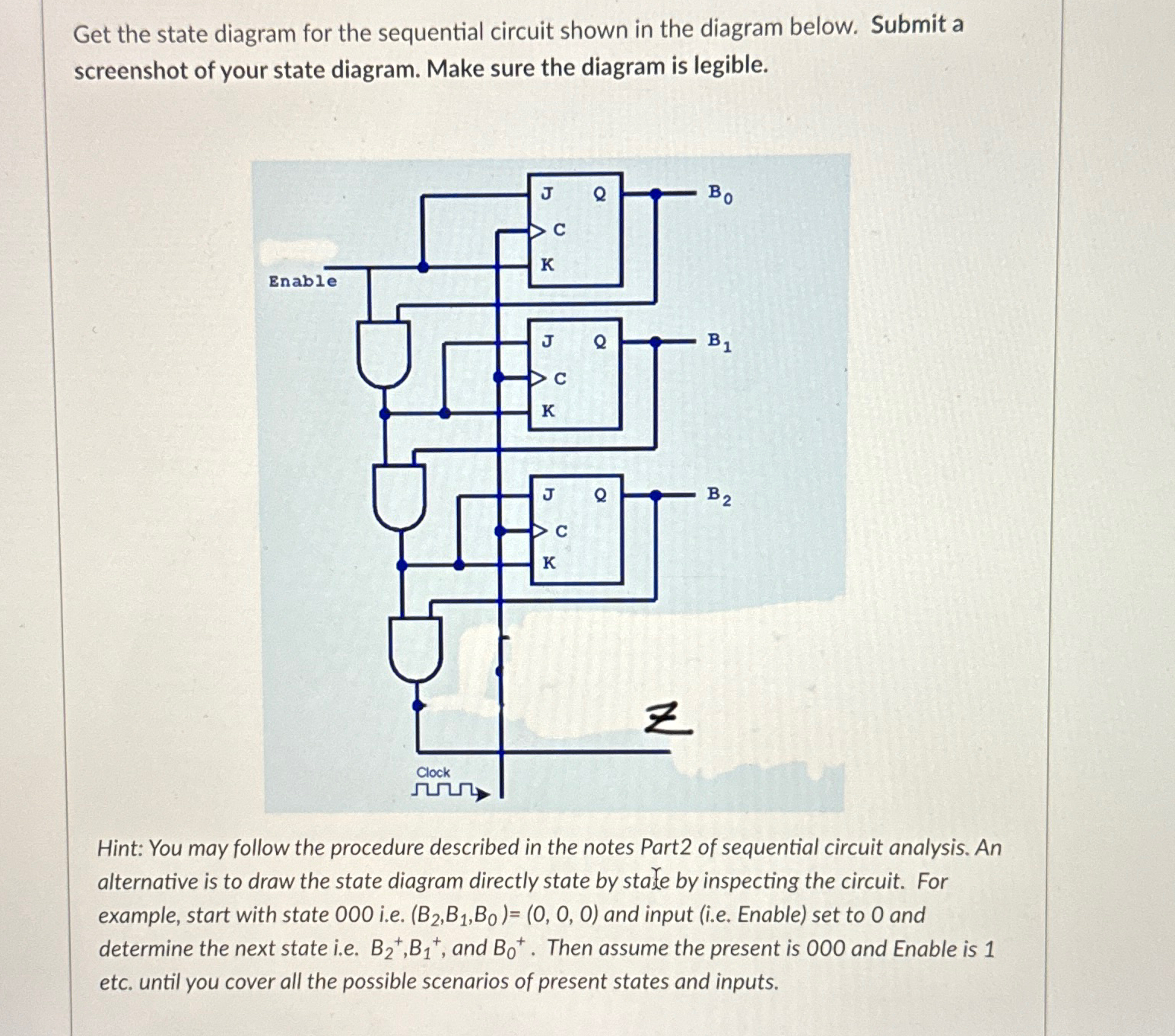

Get the state diagram for the sequential circuit shown in the diagram below. Submit a screenshot of your state diagram. Make sure the diagram is legible.

Hint: You may follow the procedure described in the notes Part $2$ of sequential circuit analysis. An alternative is to draw the state diagram directly state by stafe by inspecting the circuit. For example, start with state $000$ i$.$e$.(B_2,B_1,B_0)=(0,0,0)$ and input $($i$.$e$.$ Enable$)$ set to $0$ and determine the next state i$.$e$.B_2^{+},B_1^{+},$ and $B_0^{+}.$ Then assume the present is $000$ and Enable is $1$ etc. until you cover all the possible scenarios of present states and inputs.
