$$ Give students hand$-$on experience with IP address allocation.

Configure dynamic routing protocol using RIP

In order to complete this Lab you have to create account with the Cisco Network Academy if you use Cisco Packet Tracer Student in order to allow you to use the full features of the packet tracer. This include the saving of your work more than three times. In addition, this account is also required in the process of developing your packet tracer file for your Network simulation assignment. Without this account you cannot save your file more than three times.

In this lab, you have to create a computer network consist of three routers and three switches and some PCs as shown in Figure $2$:

Task$-1$: Create account $($if you didn't already create one$)$ with the Cisco Network Academy

Follow the steps provided at the word document file provided under Week$-2$: "Create Account$-$ Packet Tracer Student"

Task$-2$: Select the required network devices as shown below:

Task$-3$: Add module to the routers

Add two modules to the routes $($Router$-0,$ Router $-1$ and Router$-2)$:

"HWIC$-2$T$"$ that provides $2$ port serial high speed WAN

"HWIC$-4$ESW" that provides four switching ports

Task$-2$:Create the network as shown in the following diagram:

Task$-3$: Add module to the routers

$28$

Router$-2)$:

"HWIC$-2$T$"$ that provides $2$ port serial high speed WAN

$*$ "HWIC$-4$ESW" that provides four switching ports

Task$-2$:Create the network as shown in the following diagram:

Addressing Table:

Device IP Address Subnet Mask Default Gateway

$\backslash$table$[[$R$0,172\mathrm{.}16\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0,$N$/$A$],[172\mathrm{.}19\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0,$N$/$A$],[$R$1,172\mathrm{.}17\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0,$N$/$A$],[172\mathrm{.}19\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0,$N$/$A$],[172\mathrm{.}20\mathrm{.}0\mathrm{.}2255\mathrm{.}255\mathrm{.}0\mathrm{.}0,$N$/$A$],[$R$2,172\mathrm{.}18\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0,$N$/$A$],[172\mathrm{.}20\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0,$N$/$A$],[$PC$0,172\mathrm{.}16\mathrm{.}0\mathrm{.}2255\mathrm{.}255\mathrm{.}0\mathrm{.}0,172\mathrm{.}16\mathrm{.}0\mathrm{.}1],[$PC$1,172\mathrm{.}17\mathrm{.}0\mathrm{.}2255\mathrm{.}255\mathrm{.}0\mathrm{.}0,172\mathrm{.}17\mathrm{.}0\mathrm{.}1],[$PC$2,172\mathrm{.}18\mathrm{.}0\mathrm{.}2255\mathrm{.}255\mathrm{.}0\mathrm{.}0,172\mathrm{.}18\mathrm{.}0\mathrm{.}1]]$

Router type: Cisco router: $1841$

Switch type: $2950-24$

Task$-3$: Display the port labels on your diagram, as follows:

From the main menu, select "Options" then "Preferences" and then select "Always Show Port Labels" shown in the following figure:$3$:$43$

$5$G

$28$

Task $4$: Perform Basic Configuration of Router R$0$

Click on Router$-0,$ then select CLI tab and then press "Enter" and write $"$No$"$ for the question:

"Would you like to enter the initial config $[$yes$/$no$]$:$"$

and press "Enter"

Then, complete, the following steps:

Step $1$: Enter privileged EXEC mode.

Router$>$enable

Router#

Step $2$: Enter global configuration modc.

Router#configure terminal

Enter configuration commands, one per line.

Router$($config$)$#

Step $3$: Configure the router name as R$0.$

Router$($config$)$#hostname R$0$

R$0($config$)$#

Note: You can write some charterers of the commands in CLI and press "Tab" key from the keyboard to complete the command for you.

Use the same steps $($Step$-1,2$ and $3)$ to configure the name for router $2$ and router $3$ to be $R2$ and $R3,$ respectively.

Task $5$: Configure the IP addresses:

Step $1$: click on Router $0.$

Step $2$: Configure the FastEthernet $0$

Configure the Fa$0/0$ interface with the IP address I$/2\mathrm{.}16\mathrm{.}0\mathrm{.}1/16.$

R$0($config$)$#interface fa $\frac{0}{0}$

R$0($config$-$if$)$#ip address $172\mathrm{.}16\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$0($config$-$if$)$#no shutdown

Step $3$: Configure the Se$0/1/0$ interface for router R$0.$ Configure the Serial$0/1/0$ interface with the IP address $172\mathrm{.}19\mathrm{.}0\mathrm{.}1/16.$

R$0($config$-$if$)$#interface serial $0/1/0$

R$0($config$-$if$)$#ip address $172\mathrm{.}19\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$0($config$-$if$)$#clock rate $64000$

$,$ if it is DCE

R$0($config$-$ifR $0($config$-$if$)$#interface serial $\frac{0}{1}\frac{?}{0}$

R$0($config$-$if$)$#clock rate $64000$

R$0($config$-$if$)$#no shutdown

Note: The interface will be activated until the serial interface on R$1$ is configured and activated

Step $4$: Configure the Se$0/1/0$ interface for router R$1.$ Configure the Serial$0/1/0$ interface with the IP address $192\mathrm{.}168\mathrm{.}2\mathrm{.}2/24.$

R$2($config$-$if$)$#interface serial $0/1/0$

R$2($config$-$if$)$#ip address $172\mathrm{.}19\mathrm{.}0\mathrm{.}2255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R $2($config$-$if$)$#clock rate $64000,$ if it is DCE

R$2($config$-$if$)$#no shutdown

R$2($config$-$if$)$#

In the same way compete the following steps:

Step $5$: Configure the Se$0/1/1$ interface for router R$1$ with the IP address $172\mathrm{.}20\mathrm{.}0\mathrm{.}2$ and mask $255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$1($config$-$if$)$#interface serial $0/1/1$

R$1($config$-$if$)$#ip address $172\mathrm{.}20\mathrm{.}0\mathrm{.}2255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$1($config$-$if$)$#clock rate $64000,$ if it is

DCE

R$1($config$-$if$)$#no shutdown

Step $6$: Configure the FastEthernet$0/0$ interface for R$1$ with the IP address $172\mathrm{.}17\mathrm{.}0\mathrm{.}1$ and mask $255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$2($config$)$#interface fa $\frac{0}{0}$

R$2($config$-$if$)$#ip address $172\mathrm{.}17\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$2($config$-$if$)$#no shutdown

Step $7$: Configure the $Se\frac{0}{1}\frac{?}{0}$ interface for router $R2$ with the IP address $172\mathrm{.}20\mathrm{.}0\mathrm{.}1$ and mask $255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$3($config$-$if$)$#interface serial $0/1/0$

R$3($config$-$if$)$#ip address $172\mathrm{.}20\mathrm{.}0\mathrm{.}1255\mathrm{.}255\mathrm{.}0\mathrm{.}0$

R$3($config$-$if$)$#clock rate $64000,$ if it is

DCE

R$3($config$-$if$)$#no shutdown

R$3($config$-$if$)$#

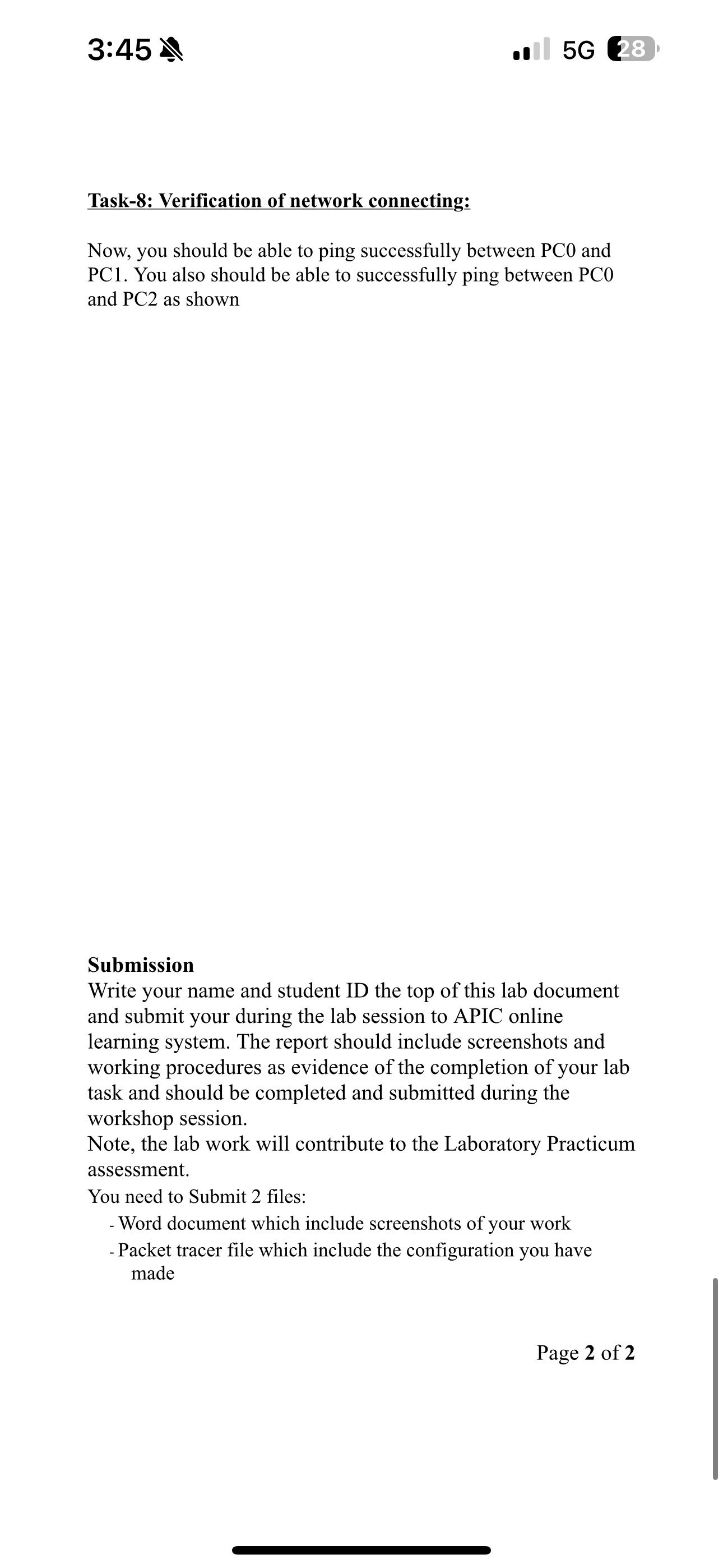

Step $8$: Configure the Fastether
