Question: Given a flow net for seepage beneath a concrete dam with soil hydraulic conductivity and unit weight . Use the soil surface as the datum

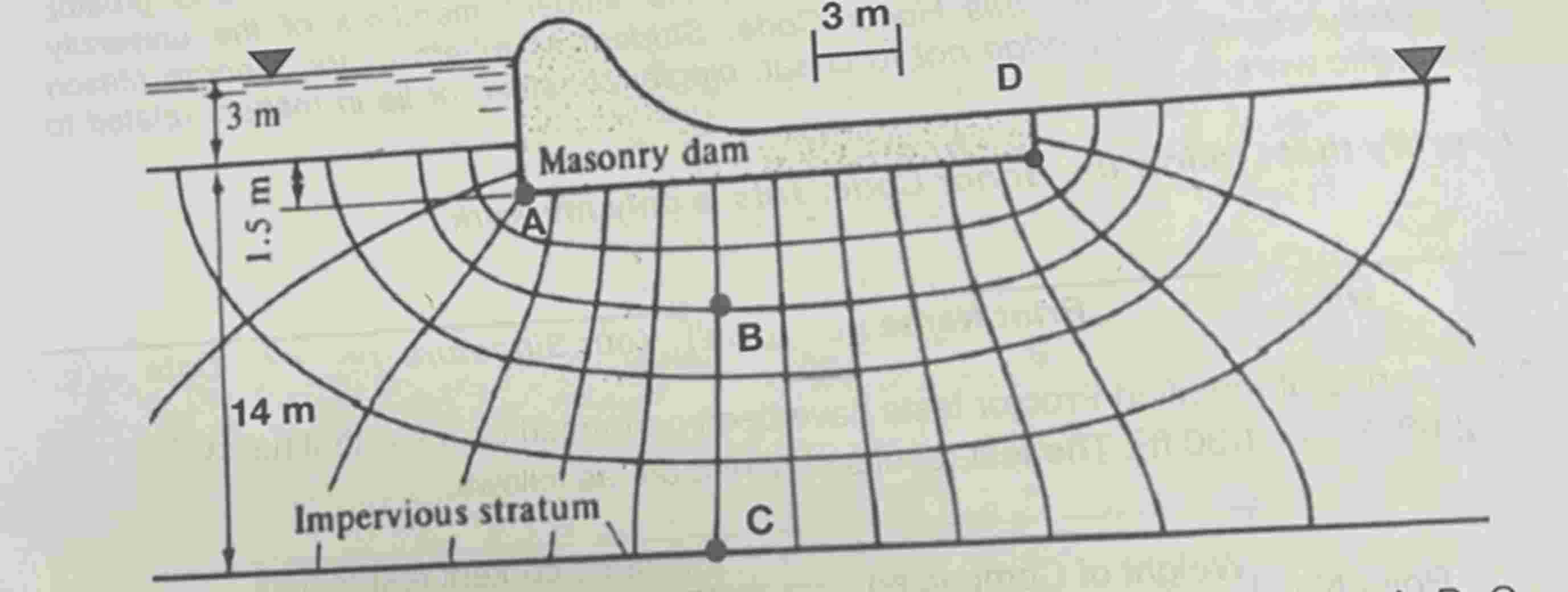

Given a flow net for seepage beneath a concrete dam with soil hydraulic conductivity and unit weight . Use the soil surface as the datum and the '3 m' for scaling.
1. Calculate the flow rate under the dam in m^3/day per 50 m dam width.
2. Find the pore water pressure at points A, B, and C.
3. Determine the effective stress at point D, considering seepage force.
