Question: Given a FSM that adds 2 binary digits. What does the state S 0 store? A . remember the previous carry bit = 0 B

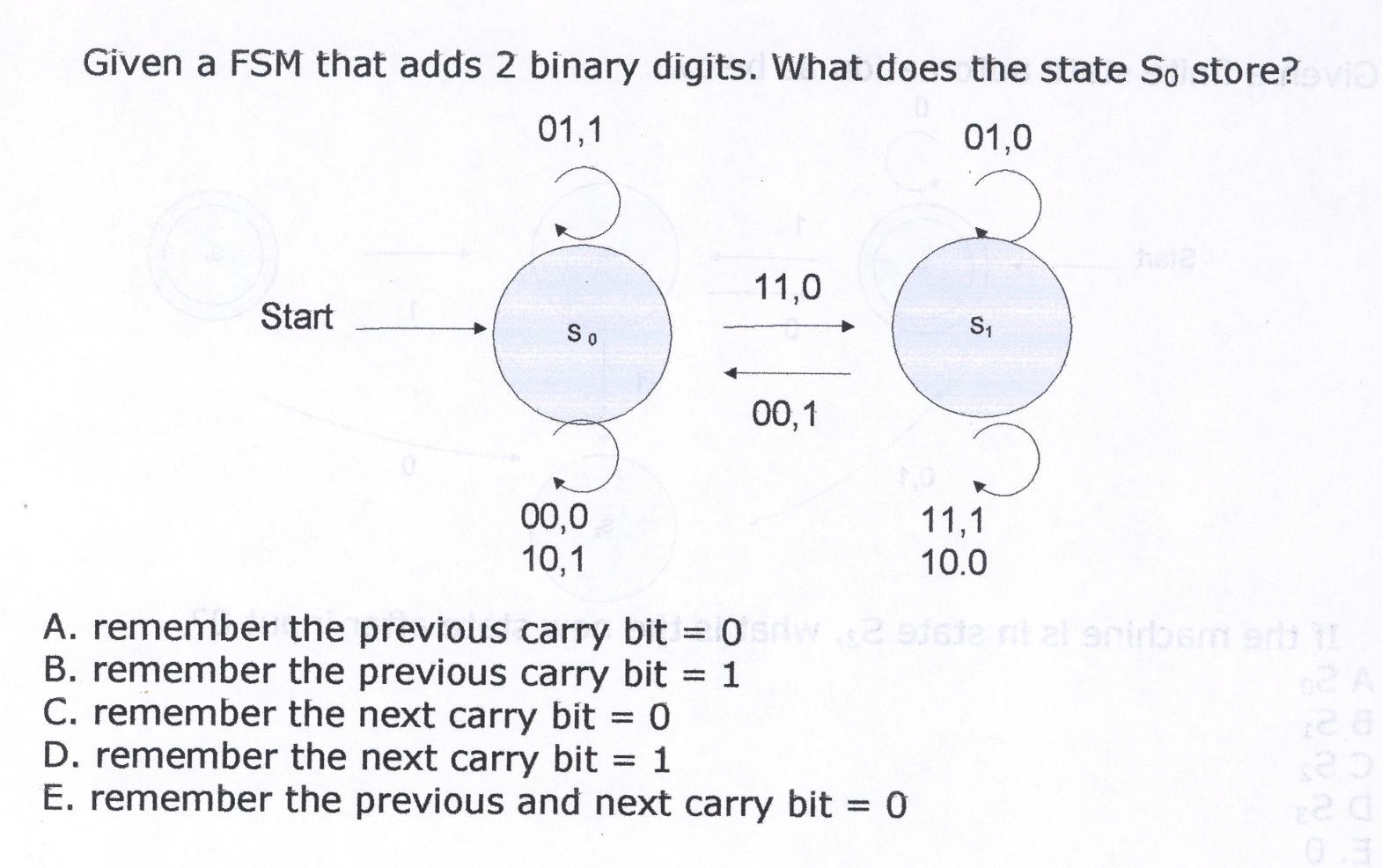

Given a FSM that adds 2 binary digits. What does the state S0 store?
A. remember the previous carry bit =0
B. remember the previous carry bit =1
C. remember the next carry bit =0
D. remember the next carry bit =1
E. remember the previous and next carry bit =0
Given a FSM that adds 2 binary digits. What does

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
