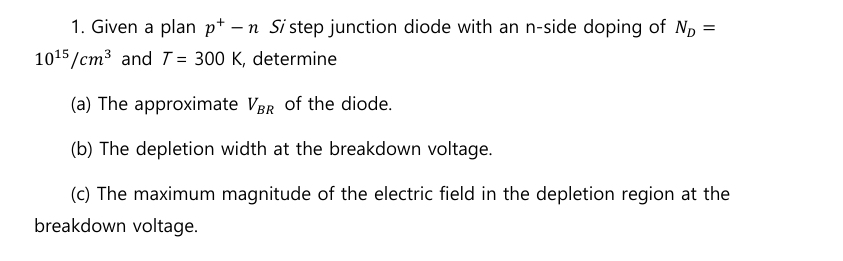

Question: Given a plan p + - n Si step junction diode with an n - side doping of N D = 1 0 1 5

Given a plan p+-n Si step junction diode with an n-side doping of ND=1015cm3 and T=300K, determine
(a) The approximate VBR of the diode.
(b) The depletion width at the breakdown voltage.
(c) The maximum magnitude of the electric field in the depletion region at the breakdown voltage.
Given a plan p + - n Si step junction diode with
