Question: Given a three span simply supported beam with constant bending stiffness EI . The span lengths and loads are shown in the figure. By utilizing

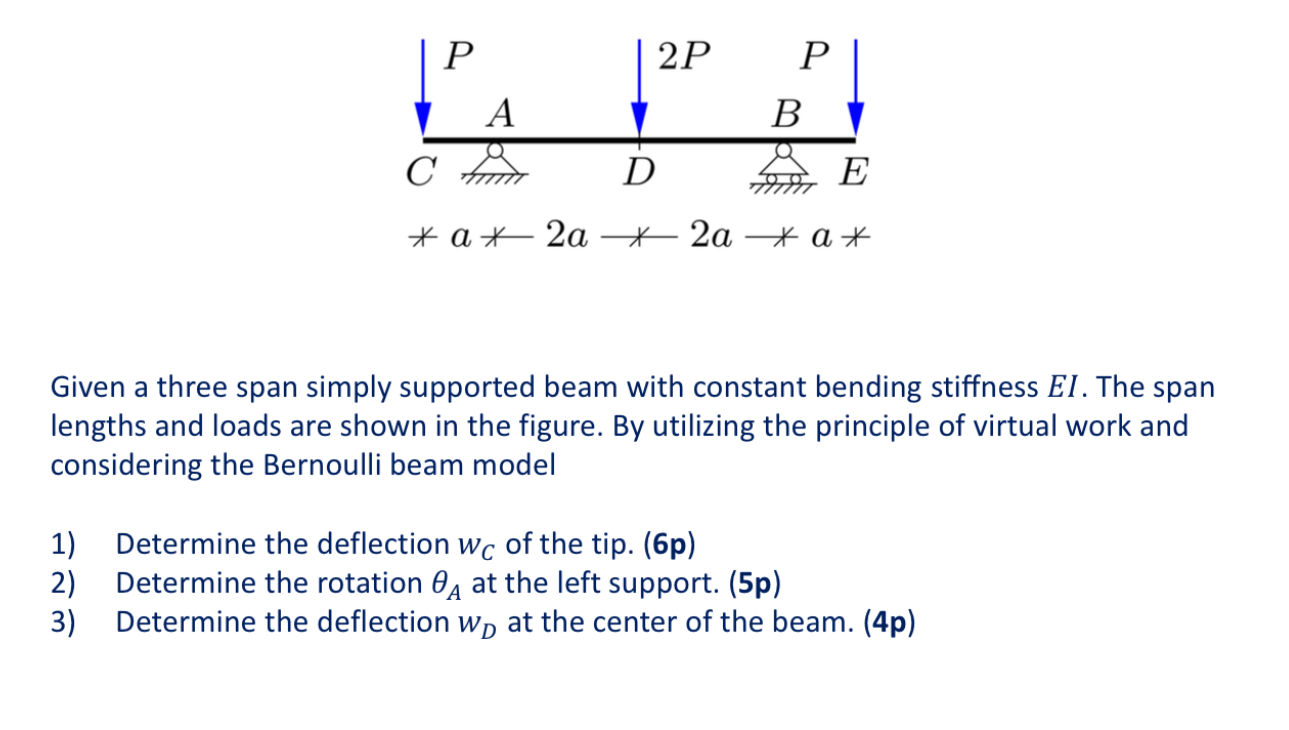

Given a three span simply supported beam with constant bending stiffness EI. The span lengths and loads are shown in the figure. By utilizing the principle of virtual work and considering the Bernoulli beam model
Determine the deflection wC of the tip. (6p)
Determine the rotation A at the left support. (5p)
Determine the deflection wD at the center of the beam. (4p)
