Given an array of 2 integers, write a program to implement the following C code that appends elements to the array:

// Declaration of variables int* A; // Integer array A with the base address pointing to variable A int a; char b, c; short d; // Append array elements { A[3], A[2] } = A[1] * A[0]; A[4] = A[2] / 230; a = A[2] % 230; b = a >> 16; // '>>' = right shift c = a & 8; // '&' = bit-wise and d = a

Registers	Variables
$s0	A

Addresses	Contents
$s0	A[0]
$s0+4	A[1]

You may use any temporary registers from $t0 to $t9 or saved registers from $s1 to $s7. Clearly specify your choice of registers and explain your code using comments (5 points).

Example Test: If the values of $s1 through $s7 are initialized in the simulator as:

Registers	Data
$s0	4000

Addresses	Contents
4000	4
4004	5

the resultant array is:

Addresses	Contents
4000	4
4004	5
4008	20
4012	0
4016	0
4020	80

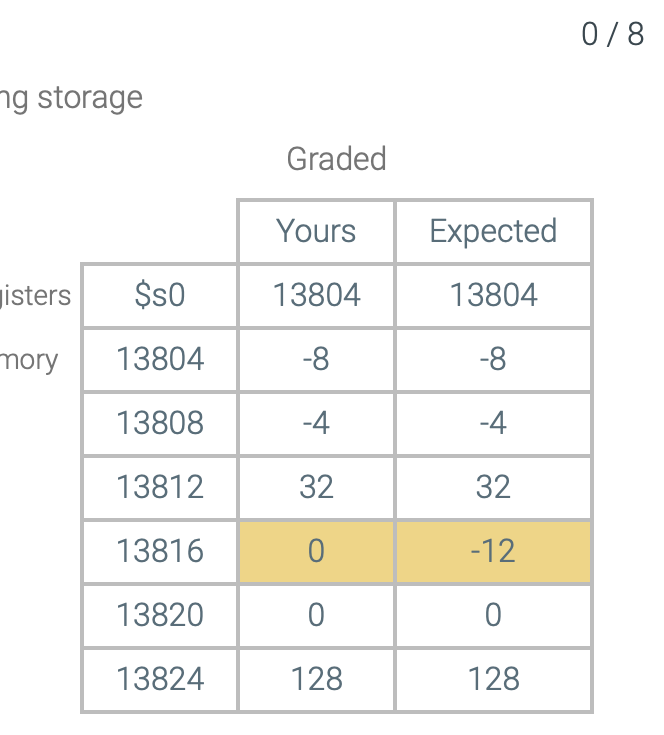

WHERE IS THE ERROR IN MY CODE:

lw $s1, 0($s0) lw $s2, 4($s0) mul $s3, $s1, $s2 sw $s3, 8($s0) addi $t0, $zero, 230 div $s3, $t0 mflo $s4 mfhi $s7 srl $s5, $s4, 16 andi $s6, $s7, 8 sll $s7, $s7, 2 or $s1, $s5, $s6 or $s1, $s1, $s7 sw $s4, 12($s0) sw $s6, 16($s0) sw $s1, 20($s0)
