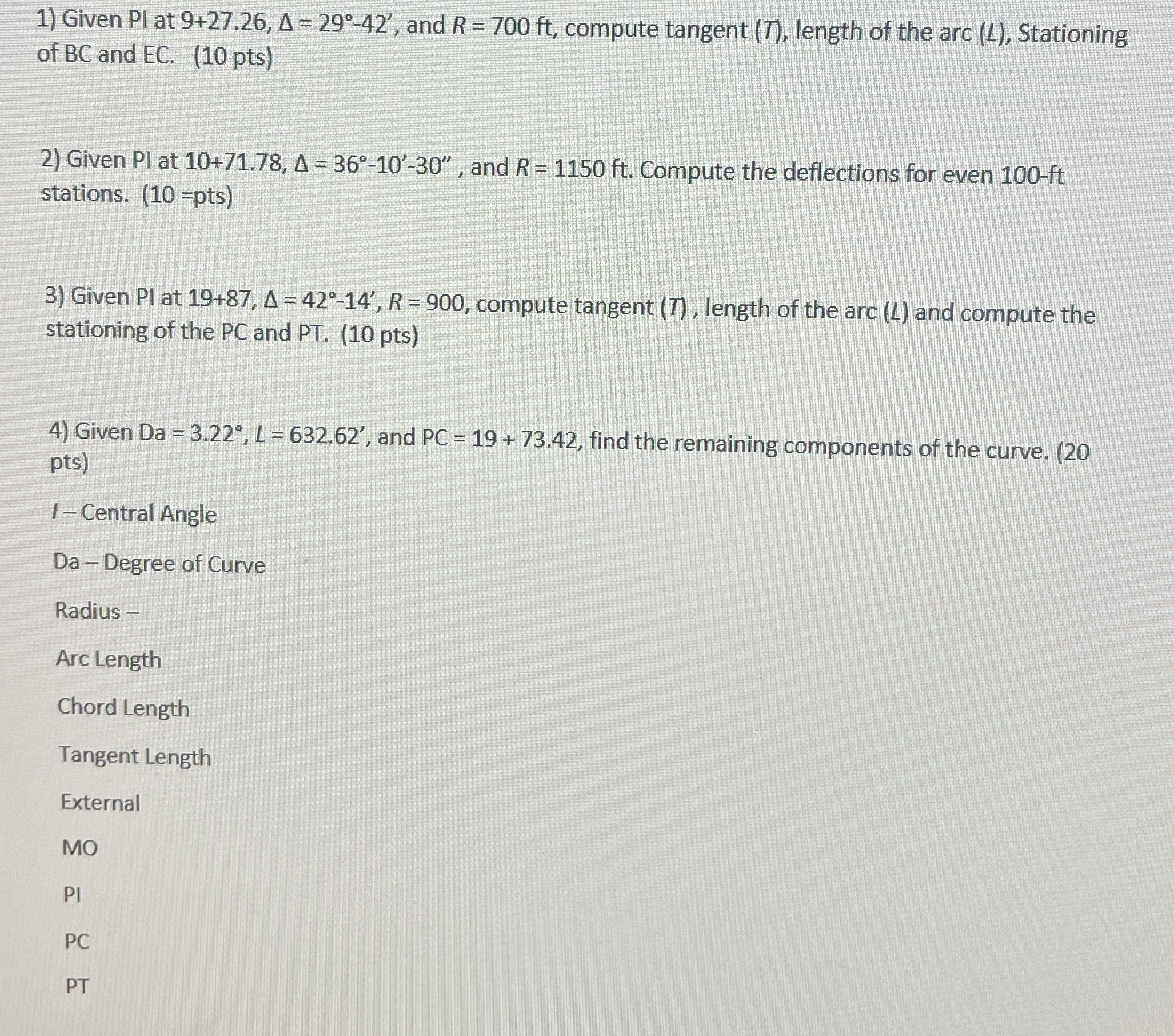

Given PI at $9+27\mathrm{.}26,=29-{42}^{\text{'}},$ and $R=700ft,$ compute tangent $(T),$ length of the arc$(L),$ Stationing of BC and EC$.(10$ pts$)$

Given PI at $10+71\mathrm{.}78,=36-{10}^{\text{'}}-{30}^{\text{'}\text{'}},$ and $R=1150ft.$ Compute the deflections for even $100-ft$ stations. $(10=$ pts$)$

Given PI at $19+87,=42-{14}^{\text{'}},R=900,$ compute tangent $(T),$ length of the arc $(L)$ and compute the stationing of the PC and PT$.(10$ pts$)$

Given $Da=3\mathrm{.}22,L={632\mathrm{.}62}^{\text{'}},$ and $PC=19+73\mathrm{.}42,$ find the remaining components of the curve. $(20pts$

I$-$Central Angle

Da $-$ Degree of Curve

Radius $-$

Arc Length

Chord Length

Tangent Length

External

MO

PI

PC

PT
