Question: Given the cantilever beam below, and using the x coordinate, as shown: ( PLEASE SHOW STEPS AND EXPLANTION FOR EVERY PART ) PART 1 The

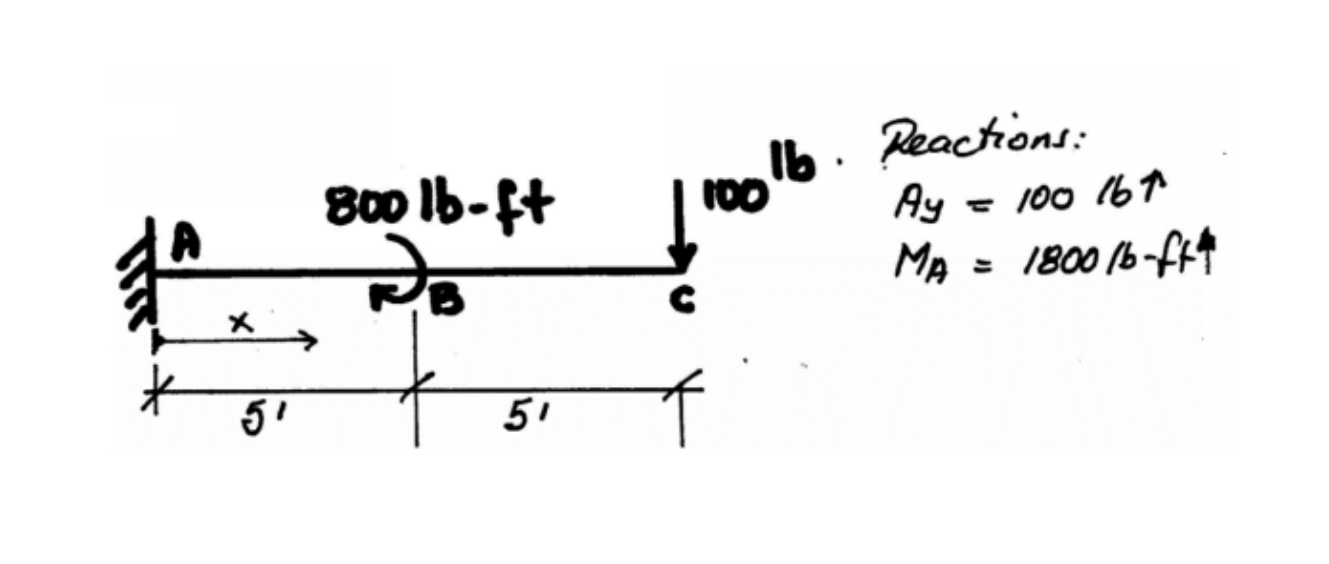

Given the cantilever beam below, and using the x coordinate, as shown: (PLEASE SHOW STEPS AND EXPLANTION FOR EVERY PART)
PART 1
The equation of the bending moment (M) in segment AB is_____(Select from one the following)
Option A: -1000-100x
Option B: +1800-100x
Option C: +1000+100x
Option D: +1800+100x
Option E: -1000+100x
Option F: +1000-100x
Option G: -1800+100x
Option H: -1800-100x
PART 2
The bending moment (M) in lb-ft just to the right of B is mostly near_______.(Select from one the following)
Option A: -1300
Option B: -1000
Option C: -1800
Option D: +1800
Option E: -500
