Question: Given the compound beam and its cross - section shown in the figures below: 1 . Draw the overall free body diagram for beam. 2

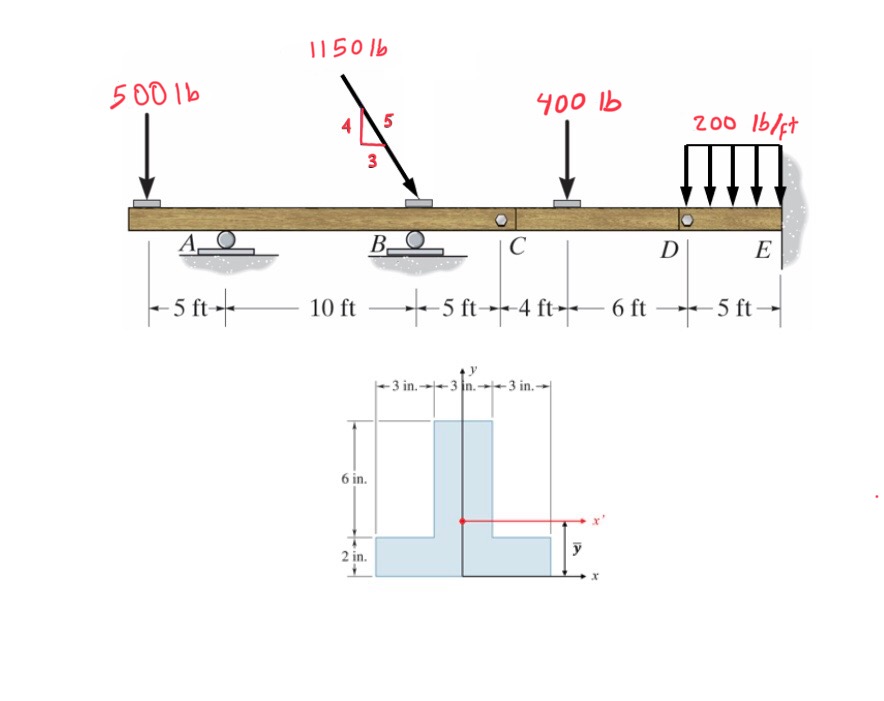

Given the compound beam and its cross-section shown in the figures below:
1.Draw the overall free body diagram for beam.
2.Draw the free body diagram for each section of the compound beam
3.Find the reaction forces at points A,B,C,D,and E.
4.Draw the shear and moment diagrams for the entire beam.
5.If the beams cross-section has the dimensions shown, find the location of the centroid y .
6.Find the Moment of Inertia about the centroidal axis
Given the compound beam and its cross - section

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
