Question: Given the extended LAN shown in figure below, indicate which ports are not selected by the spanning tree algorithm. Show the spanning tree created for

Given the extended LAN shown in figure below, indicate which ports are not selected by the spanning tree algorithm. Show the spanning tree created for the given extended LAN. Show all steps to create the spanning tree.

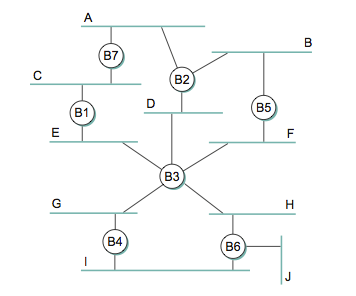

Given the extended LAN shown in figure below, indicate which ports are

87 B7 C B2 BI (B5 E F B3 G H B4 B6 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Can someone help with 13 please Chosen by each approach. If each switch chooses the outbound VCI, is it still necessary to wait one RTT before data is sent? Given the extended LAN shown in Figure...

Can someone help with 13? Please Given the extended LAN shown in Figure 3.48, indicate which ports are not selected by the spanning tree algorithm

Given the extended LAN shown in Figure 1, indicate which of the ports and switches are not selected by the spanning tree algorithm. You can indicate this by putting a cross on the port and switch...

Given the extended LAN shown in Figure 3.46, assume that bridge B1 suffers catastrophic failure. Indicate which ports are not selected by the spanning tree algorithm after the recovery process and a...

Given the extended LAN shown in the figure below, Question 1 2 . Given the extended LAN shown in the figure below, Indicate which bridges are not selected by the spanning tree algorithm for LAN A , B...

. Given the extended LAN shown in the figure below, 1 ) Indicate which bridges are not selected by the spanning tree algorithm for LAN A , B , and I. 2 ) Assume that bridge B 5 and one link of B 1...

1. Given the extended LAN shown in the Fig.1, what is the problem with this extended LAN? If spanning tree algorithm is used, please indicate which ports are not selected by the spanning tree? 83 85...

Given the extended LAN shown in the following figure, indicate which ports are not selected by the spanning tree algorithm. Please directly mark these disabled ports on the figure.

Given the extended LAN shown in the Figure below, indicate which ports are not selected by the spanning tree algorithm? Please show stept by step how you get to the answer and show the finalized...

4. Given the extended LAN shown in the following figure, B7 B2 B5 B1 B3 B4 B6 indicate which ports are not selected by the spanning tree algorithm
