Question: Given: The following beam is used for Problems 1 , 2 , and 3 . M L = 1 2 f t . E I

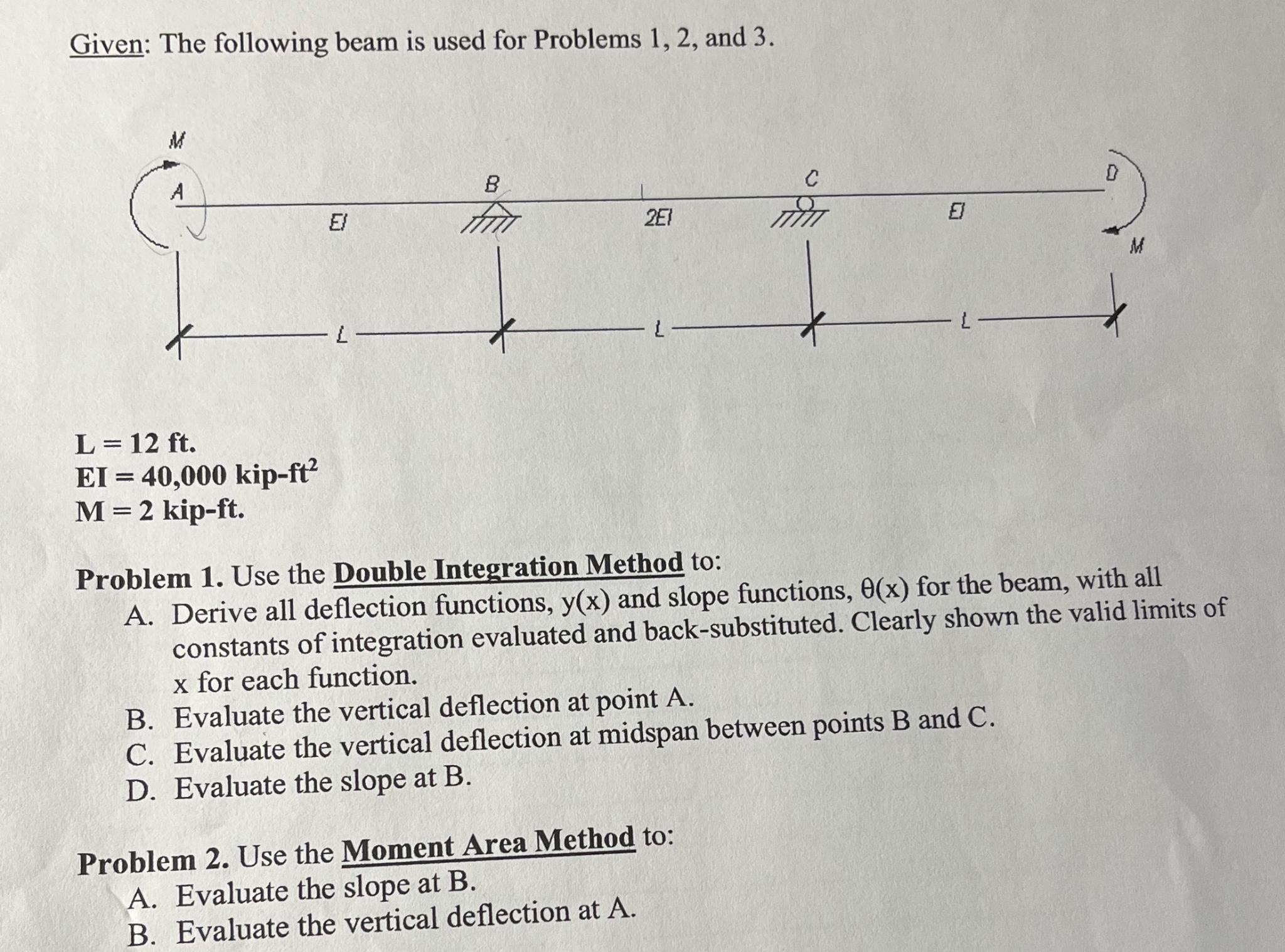

Given: The following beam is used for Problems 1,2, and 3.
M
L=12ft.
EI=()2
Problem 1. Use the Double Integration Method to:
A. Derive all deflection functions, y(x) and slope functions, (x) for the beam, with all constants of integration evaluated and back-substituted. Clearly shown the valid limits of x for each function.
B. Evaluate the vertical deflection at point A.
C. Evaluate the vertical deflection at midspan between points B and C.
D. Evaluate the slope at B.
Problem 2. Use the Moment Area Method to:
A. Evaluate the slope at B.
B. Evaluate the vertical deflection at A.please help with ONLY problem 2 moment area method
Given: The following beam is used for Problems 1
