Question: Given the following program control diagram: Enumerate the Test Requirements for node coverage. Enumerate the Test Requirements for edge coverage. Enumerate the Test Requirements for

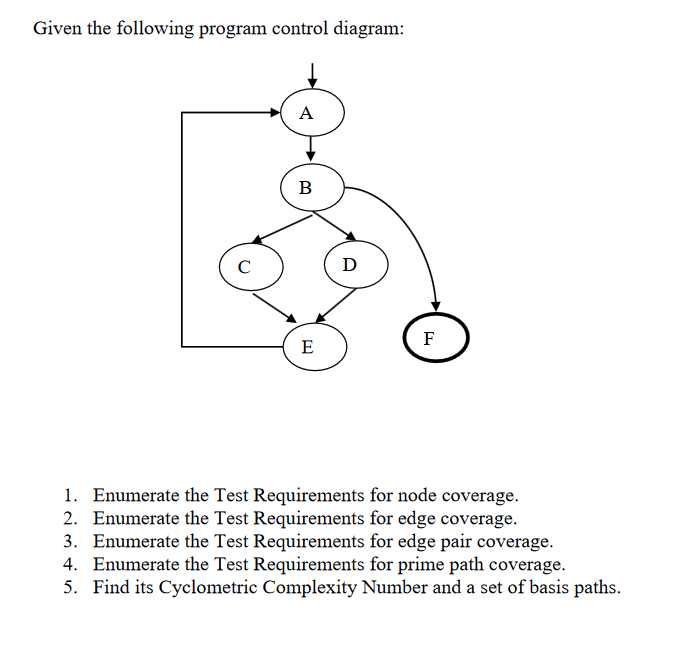

Given the following program control diagram:
Enumerate the Test Requirements for node coverage.
Enumerate the Test Requirements for edge coverage.
Enumerate the Test Requirements for edge pair coverage.
Enumerate the Test Requirements for prime path coverage.
Find its Cyclometric Complexity Number and a set of basis paths.
please explain the questions in detail and draw diagrams if needed.
