Question: Given the Full Adder Block Diagram below: A = 1 1 1 0 2 B = 1 1 0 1 2 SEL = 0 What

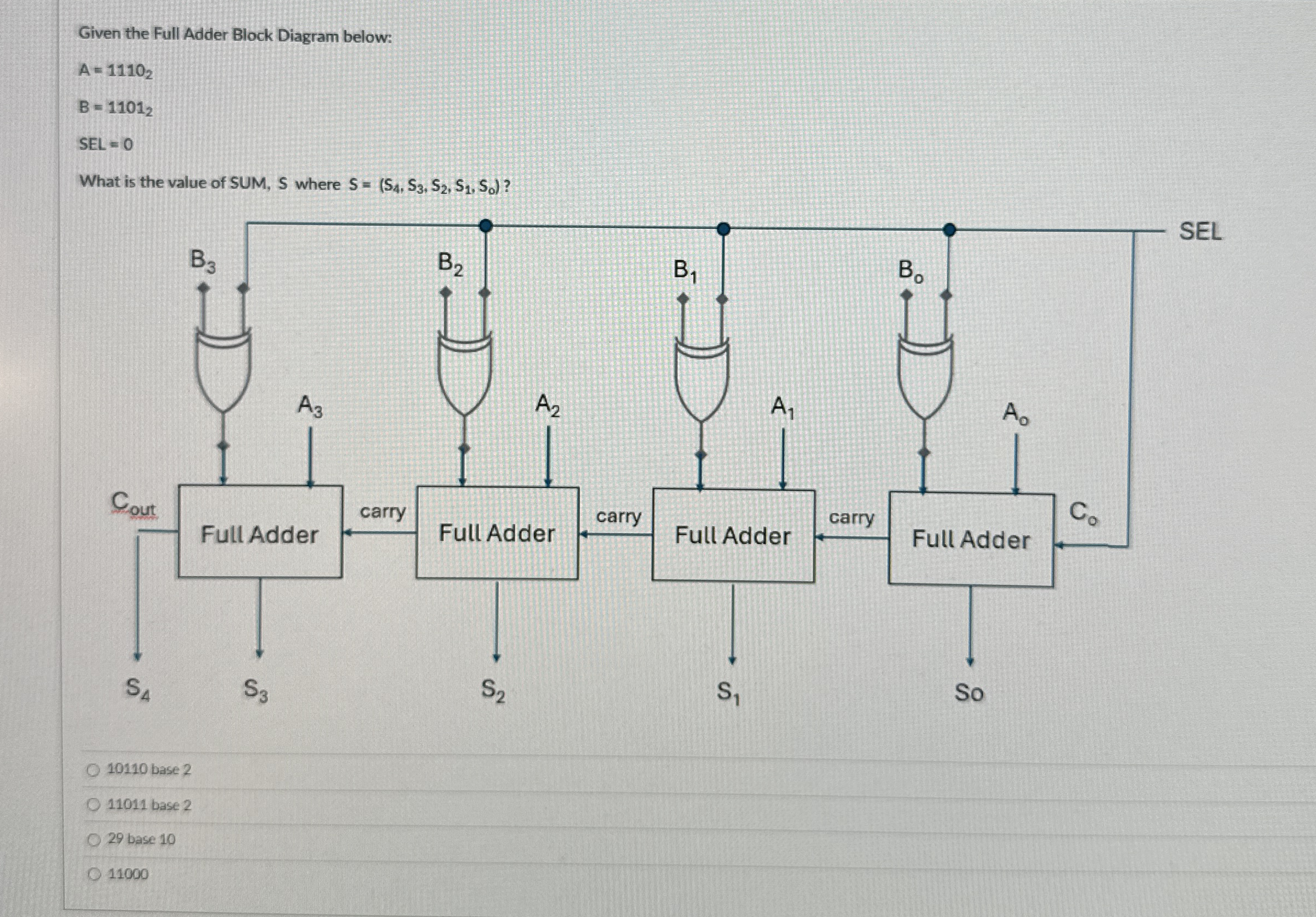

Given the Full Adder Block Diagram below:
A=11102
B=11012
SEL=0
What is the value of SUM, S where S=(S4,S3,S2,S1,S0)?
10110 base 2
11011 base 2
29 base 10
11000
