Question: Given the loaded beam in the figure below, where E = 6 8 . 9 GPa, and I = 2 1 0 - 8 m

Given the loaded beam in the figure below, where E=68.9GPa, and I=210-8m4

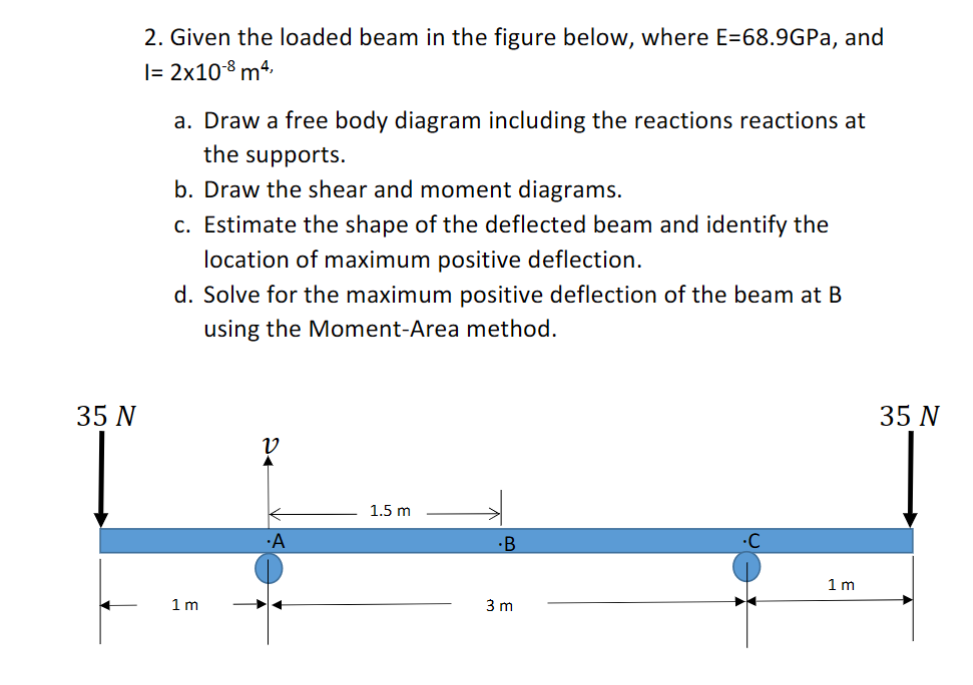

a. Draw a free body diagram including the reactions reactions at
the supports.
b. Draw the shear and moment diagrams.
c. Estimate the shape of the deflected beam and identify the
location of maximum positive deflection.
d. Solve for the maximum positive deflection of the beam at B
using the Moment-Area method.
Given the loaded beam in the figure below, where

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
