Question: Given the network in Fig. P 8 . 5 2 , determine the magnitude of the V o phasor if V S = 3 3

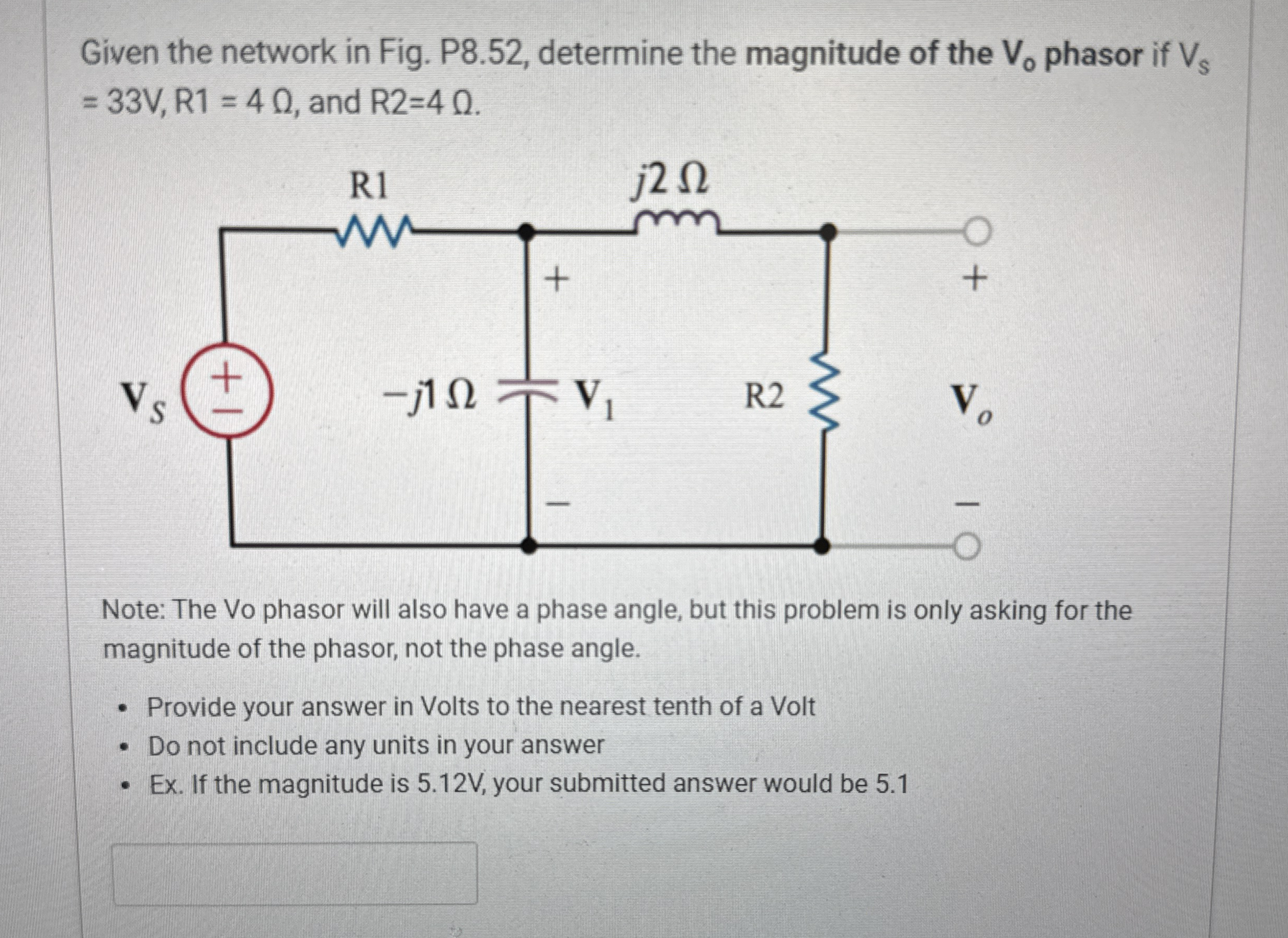

Given the network in Fig. P8.52, determine the magnitude of the Vo phasor if VS=33V,R1=4, and R2=4.
Note: The Vo phasor will also have a phase angle, but this problem is only asking for the magnitude of the phasor, not the phase angle.
Provide your answer in Volts to the nearest tenth of a Volt
Do not include any units in your answer
Ex. If the magnitude is 5.12 V , your submitted answer would be 5.1
Given the network in Fig. P 8 . 5 2 , determine

Step by Step Solution

There are 3 Steps involved in it
