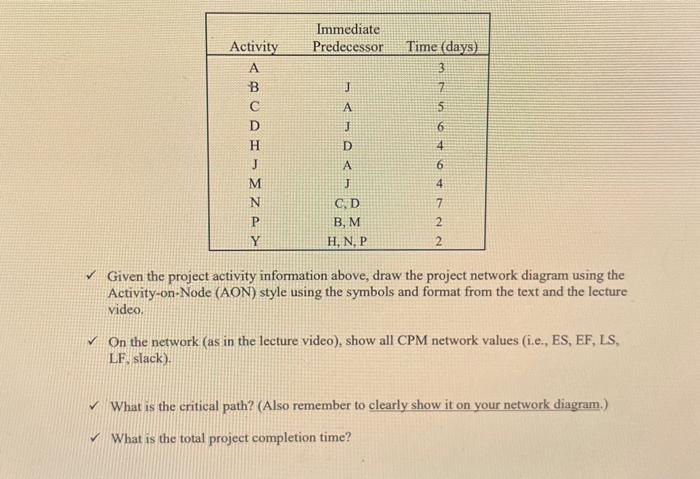

Question: Given the project activity information above, draw the project network diagram using the Activity-on-Node (AON) style using the symbols and format from the text and

Given the project activity information above, draw the project network diagram using the Activity-on-Node (AON) style using the symbols and format from the text and the lecture video. On the network (as in the lecture video), show all CPM network values (i.e., ES, EF, LS, LF, slack). What is the critical path? (Also remember to clearly show it on your network diagram.) What is the total project completion time
